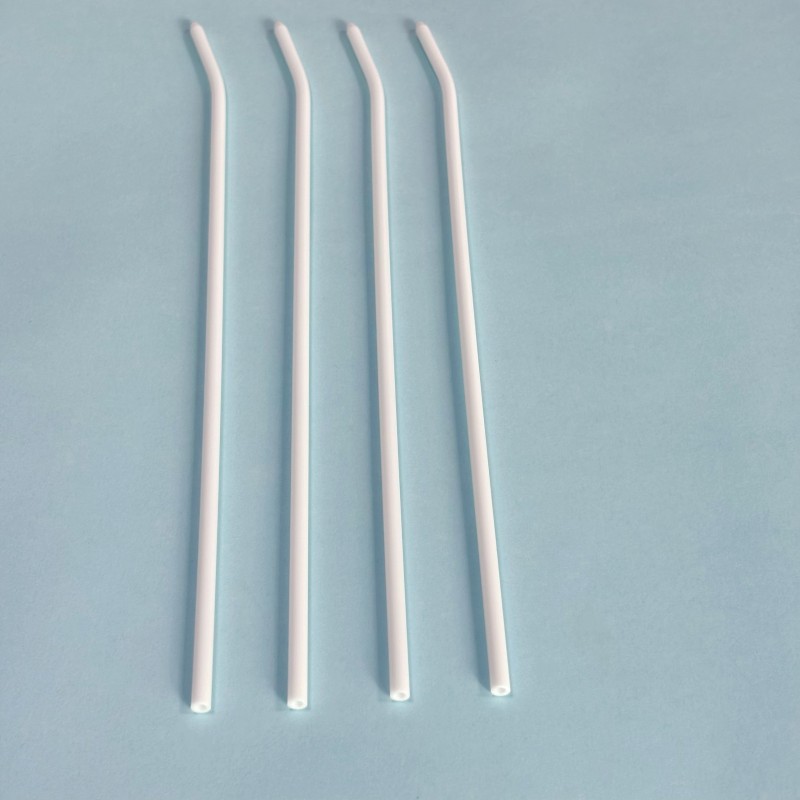

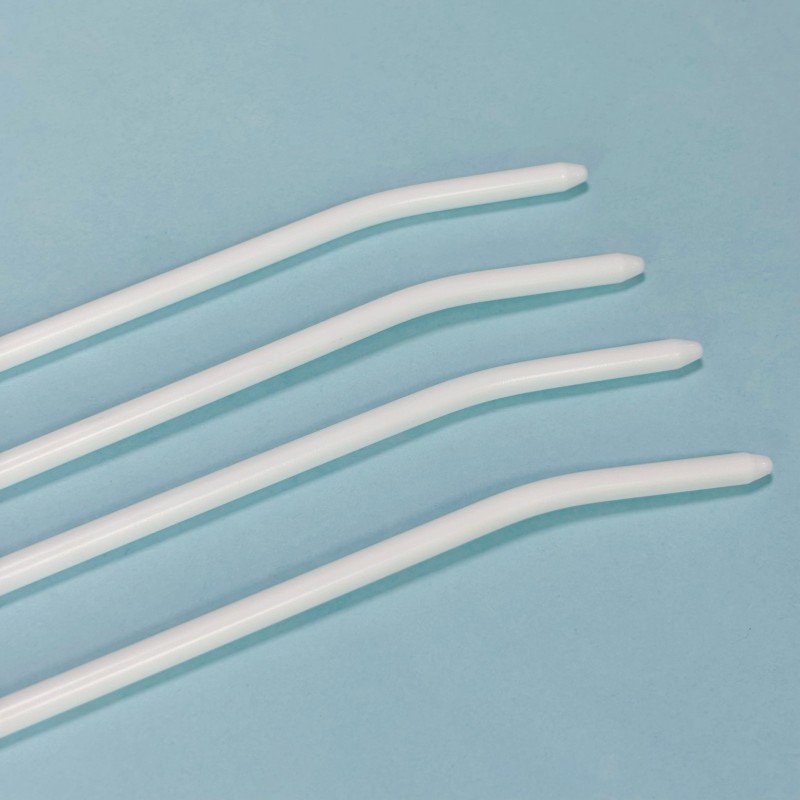

Medical PP Uterine Catheter Semi-Finished (Tip Forming + Bend Shaping) - Professional Custom Manufacturer

Product Overview

Core Processes and Product Advantages

1. Medical Grade PP Material Properties

• Excellent biocompatibility: Complies with ISO 10993 biocompatibility standards, non-cytotoxic, non-sensitizing, non-hemolytic, and safe for contact with human mucosal tissues

• Strong chemical stability: Resistant to corrosion by most medical disinfectants, does not react with intrauterine drugs, ensuring the accuracy of drug delivery in finished products

• Ideal mechanical properties: Combines good rigidity and flexibility, pushes smoothly without kinking, while maintaining lumen patency and effectively avoiding blockage

• Optional X-ray visibility: Medical grade contrast agent can be added to achieve real-time imaging positioning during surgery, improving the operational safety of finished devices

• Good processing adaptability: High surface finish, easy for secondary processing such as connector welding, printing and coating

2. Precision Tip Forming Process

• Completely eliminates burrs and sharp edges at the tube end, minimizing mechanical damage to cervical mucosa and endometrium during use of finished devices

• Seamless transition between tip and tube body, no steps or depressions, avoiding tissue scraping and bacterial residue

• Precisely controls tip diameter, length and radian to adapt to different cervical os sizes and finished product design requirements

• Customizable tip hardness to balance insertion guidance and tissue protection

3. Precise Bend Shaping Process

• Bend angle can be precisely customized within 15°-90° with tolerance controlled within ±2°

• No wrinkles, no collapse, no wall thinning at the bend, maintaining the cross-sectional area of the lumen

• Stable bend angle after shaping, no springback deformation under clinical use temperature and pressure

• Multi-segment bend structure can be designed to perfectly fit the physiological curvature of female reproductive tract and reduce patient discomfort

PP Medical Tubing

PP Medical Tubing

Full-Dimensional Customization Capabilities

1. Structure and Dimension Customization

• Tube specifications: Outer diameter 1.0mm-8.0mm, inner diameter 0.5mm-6.0mm, length 50mm-500mm, tolerance ±0.05mm

• Lumen structure: Single lumen, double lumen, multi-lumen (up to 6 lumens), independent drug delivery lumen, drainage lumen and ventilation lumen can be designed

• Tip styles: Bullet-shaped, round-headed, conical, olive-shaped, side-hole and other tip options

• Bend parameters: Single bend, double bend, multi-segment bend, bend angle, bend radius and bend position can all be customized

• Side hole design: 1-10 side holes can be processed at any position of the tube body, hole diameter 0.3mm-2.0mm, smooth hole edges without burrs

2. Material and Performance Customization

• Material selection: Medical homopolymer PP, random copolymer PP, transparent PP, low temperature resistant PP, high rigidity PP, etc.

• Hardness adjustment: Shore hardness 50D-80D customizable to meet different clinical operation feel requirements

• Functional modification: Add contrast agent for X-ray visibility, add antibacterial agent for antibacterial function, add lubricant for surface lubrication

• Color customization: Tube body and tip colors can be customized according to customer requirements for product differentiation and operation identification

3. Processing and Delivery Customization

• Surface treatment: Plasma treatment, hydrophilic coating pretreatment and other services can be provided to improve subsequent processing adhesion

• Cutting precision: Fixed-length cutting can be performed according to customer requirements with flat and burr-free cuts

• Flexible batch: Supports small-batch sample trial production (50-1000 pieces) and large-scale mass production (over 100,000 pieces)

• Delivery cycle: 7-10 days for samples, 15-25 days for bulk orders, urgent orders can be prioritized

Quality Assurance and Compliance

• Production environment: Class 10,000 clean workshop, compliant with GMP medical device production quality management specifications

• Quality management system: ISO 13485:2016 certified

• Raw material control: All raw materials come from internationally renowned brands, providing complete material certificates and biocompatibility reports

• Testing capability: Equipped with a full set of physical and chemical performance testing equipment, each batch of products is issued with a test report

• Traceability: Established a complete batch traceability system, each batch of products can be traced back to raw material batches and production records

Typical Application Finished Products

• Hysterosalpingography catheters (HSG)

• Intrauterine insemination catheters (IUI)

• Disposable abortion suction catheters

• Intrauterine drainage catheters

• Endometrial biopsy catheters

• Hysteroscopy auxiliary catheters

• Postpartum intrauterine irrigation catheters
