Superior Mechanical Properties: Combines the strength of polyamide with the flexibility of polyether, offering excellent columnar strength to prevent buckling during advancement while maintaining exceptional bendability in complex biliary tracts
Outstanding Kink Resistance: Rapidly returns to its original shape after deformation, minimizing procedural interruptions caused by catheter kinking
Excellent Biocompatibility: Complies with ISO 10993 biocompatibility standards, reducing adverse tissue reactions and ensuring patient safety
Wide Temperature Stability: Maintains consistent performance across a broad temperature range (-40°C to 120°C), suitable for various clinical environments
High Chemical Resistance: Resists degradation from common medical fluids and contrast agents used in ERCP procedures
Three Independent Channels:
Guidewire channel: Smooth inner surface for seamless guidewire manipulation
Contrast channel: Enables real-time imaging of biliary and pancreatic ducts
Balloon inflation channel: Precise control over balloon expansion and deflation
Variable Diameter Structure: Tapered distal end facilitates easier and faster cannulation of the papilla of Vater, reducing procedure time
Precision Extrusion: Tight dimensional tolerances (±0.05mm) ensure consistent performance and compatibility with standard ERCP accessories
Color-Coded Options: Available in multiple blue shades and white for easy identification during assembly and use

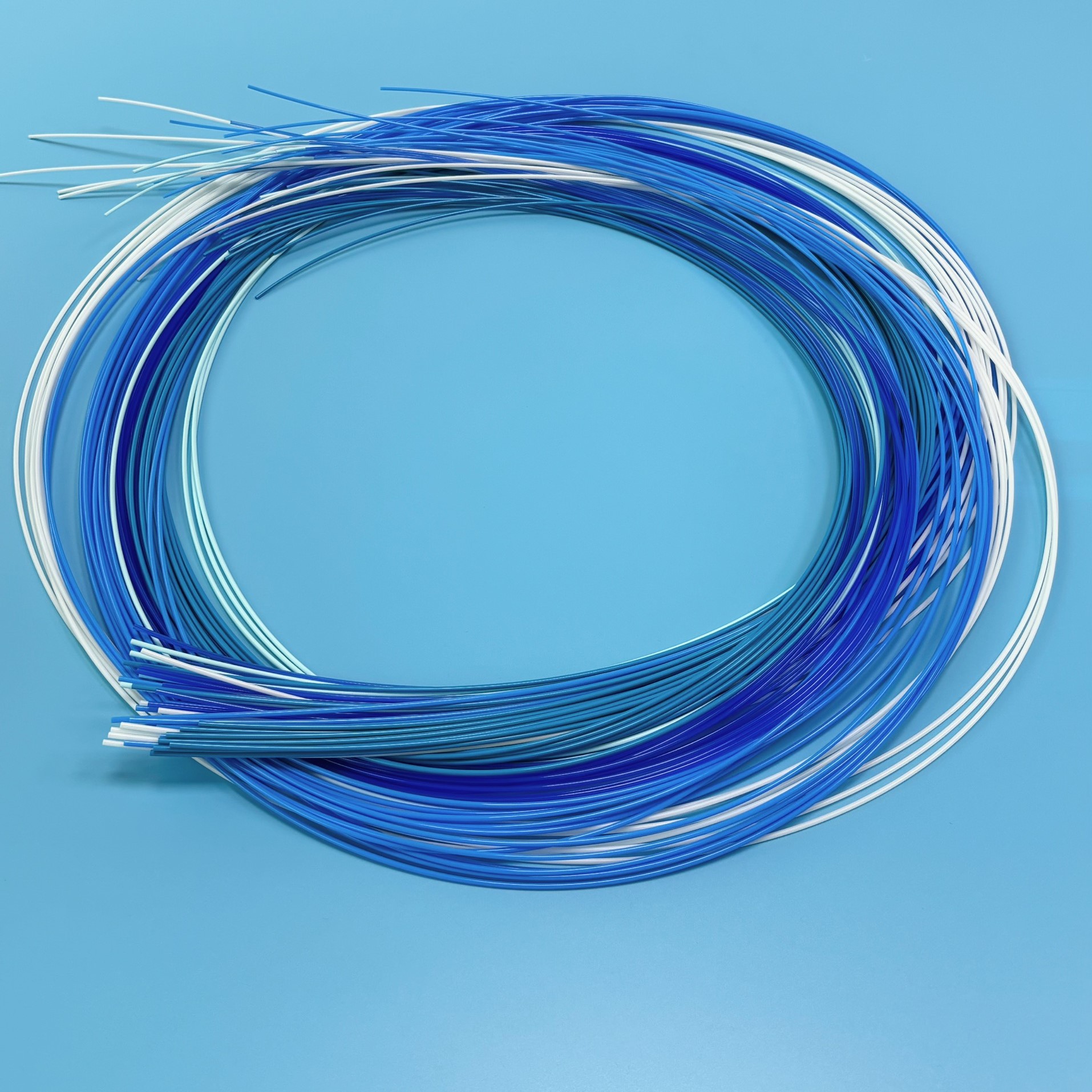

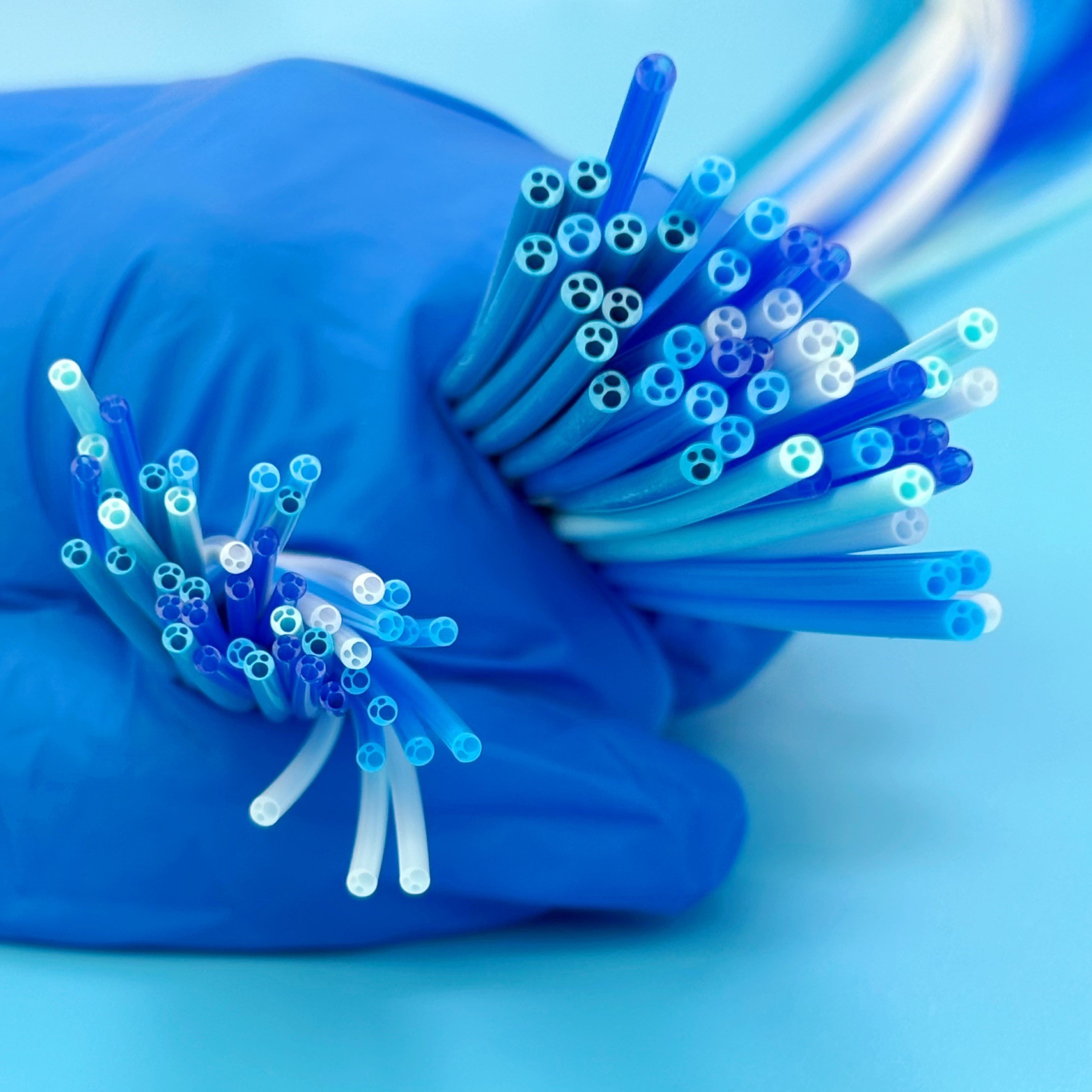

Pebax Multi Lumen Tubing
Pebax Multi Lumen Tubing
| Material Name | Pebax (Polyvinyl chloride ) |
| Characteristics of Pebax | Pebax have soft and hard;they can use together; Pebax can bearing high temperature, but unsuited high pressure field, the characteristics are completely mach the index requirements of national pharmacopoeia, |
Size of PEBAX tube | inner Diameter: 0.3mm~19.50mm Thickness Wall: 0.50mm~0.50mm Deviation: ±0.02mm~±0.150mm |
| Extra value Service | 1.Assignable of the Tube color ; 2.develop condition: add 20~40%Baso4;transparent and frost;Baso4 color line |
| Application of range | Stomach tube, oxygen catheter; infusion catheter; pressure extension tube; connector tube of force pump, trachea cannula catheter. |
| Application of range | Packaging tube materials for Various medical guide wire, Instrument connecting tube; structural tube, |
| Parameter | Details |
|---|---|
| Material | Arkema PEBAX® 7233 MED |
| Structure | Triple-lumen (3 independent channels) |
| Hardness | 72 Shore A |
| Outer Diameter Range | 1.0mm - 3.0mm (customizable) |
| Inner Diameter Range | 0.3mm - 2.0mm (customizable) |
| Length | Up to 2500mm (customizable) |
| Wall Thickness | 0.15mm - 0.5mm (customizable) |
| Tolerance | ±0.05mm |
| Color Options | Dark blue, medium blue, light blue, white (customizable) |
| Surface Finish | Smooth, glossy |
Dimensional accuracy inspection
Pressure resistance testing
Kink resistance evaluation
Visual defect examination
Material traceability verification
Certification Status: We provide ISO 13485 system certification for our production process. This product does not have CE, FDA, or other international medical device certifications.
Sterilization Service: We do not provide sterilization services. All products are supplied in a non-sterile state and require sterilization by the customer before clinical use.
Intended Use: This product is a component for medical device manufacturers. It is not intended for direct clinical use on patients.
Custom dimensions (outer diameter, inner diameter, length)
Custom lumen configurations
Color matching
Special surface treatments
Packaging customization
ERCP stone extraction balloons
Biliary dilation balloons
Pancreatic duct access catheters
Endoscopic retrograde cholangiopancreatography accessories
