Products

Home / Products / Single Lumen Tube / Customized Medical Grade PEEK Tube (Extruded PEEK Tubing) with Printing

Customized Medical Grade PEEK Tube (Extruded PEEK Tubing) with Printing

Name: Customized Medical Grade PEEK Tube (Extruded PEEK Tubing) with Printing
Brand: Bova
Rating: 5.0 (81 reviews)


Availability:

Quantity:



Inquire Add to Basket

ISO 13485 PEEK Tube OEM Factory

MQQ：500pcs

Size：1.8*1.168

Delivery time：20-30days

Custom medical plastic extrusion tubing accepted

Model:
PEEK
Brand:
Bova

Customized Medical Grade PEEK Tube Extruded PEEK Medical Tubing Disposable Medical PEEK Tubing with Printing PEEK Catheter Customized PEEK Catheter PEEK Printed Catheter OEM PEEK Medical Tubing Customized PEEK Medical Tube

Product Description

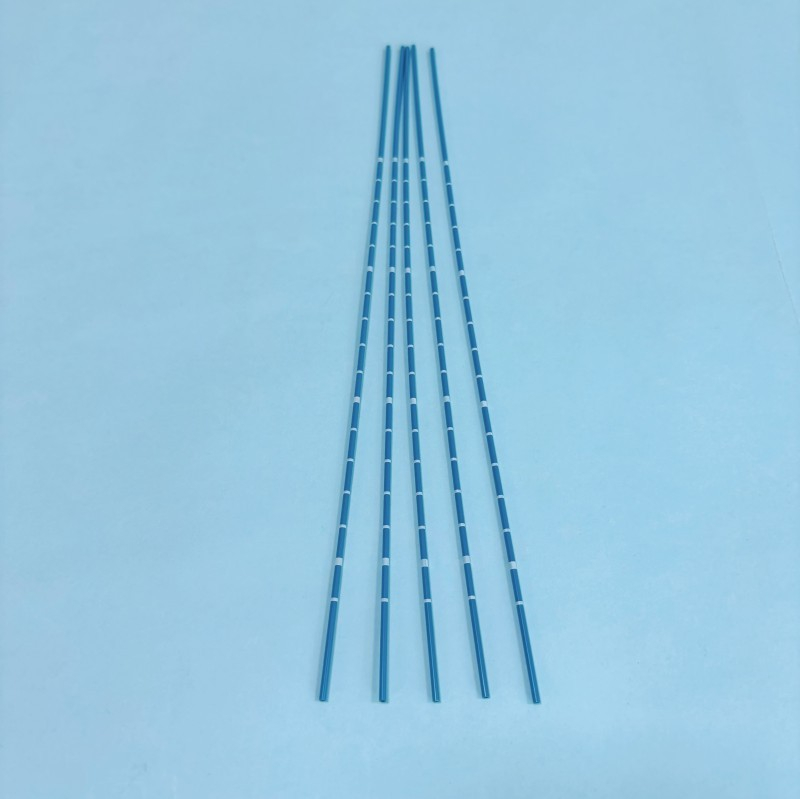

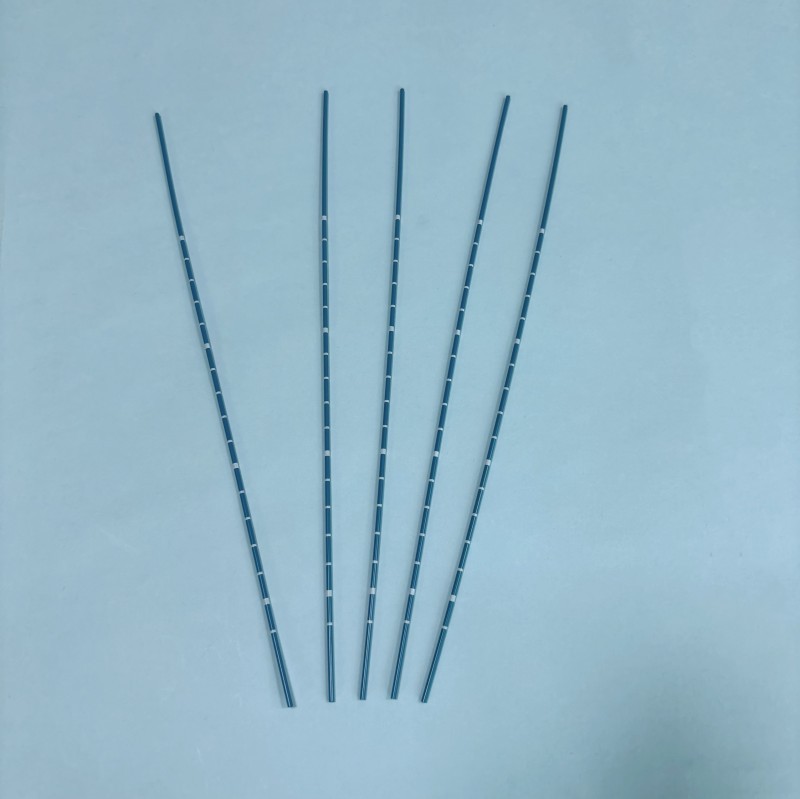

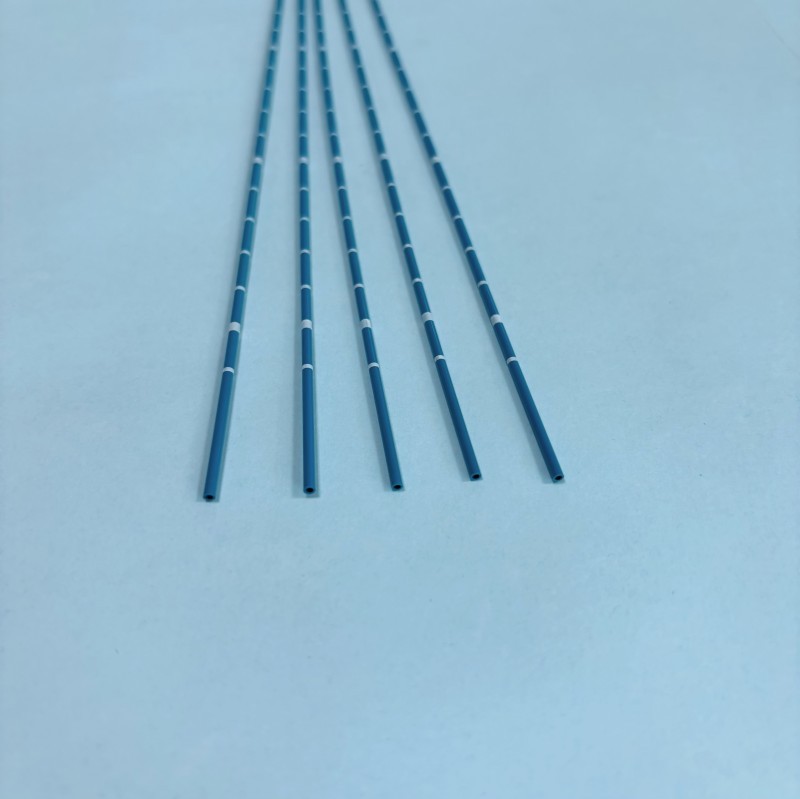

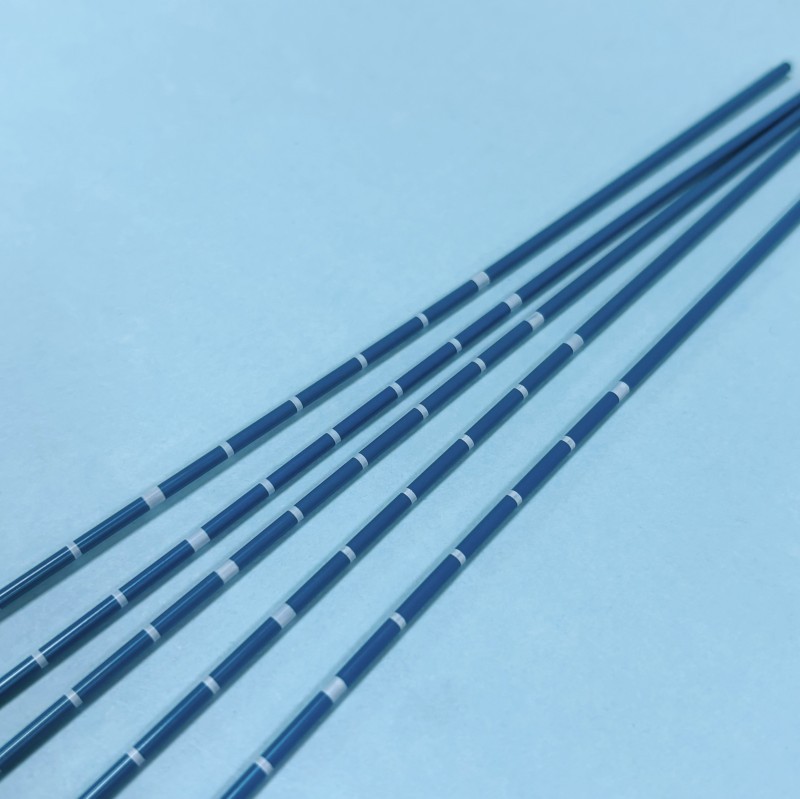

Customized Medical Grade PEEK Tube (Extruded PEEK Tubing) with Printing

OD 1.8 mm / ID 1.168 mm | Precision Extrusion | Custom OEM Manufacturing

Product Overview

This medical-grade PEEK retraction inner tube is manufactured using high-performance polyether ether ketone (PEEK) through advanced precision extrusion technology.

Designed for high-end medical device applications, this tubing offers excellent dimensional stability, smooth surface finish, and reliable mechanical performance.

⚠️ Important Notice:
This product is a non-sterile, semi-finished extruded tube. It does not include sterilization or medical device certification and must undergo further processing, validation, and regulatory approval by the customer.

Materials

Material	HDPE	LDPE	PA	PEBAX	TPU	PP	PVC	PEEK	PTFE
Density	0.96	0.93	1.15	1.01	1.2-1.25	0.88	1.3	1.35	2.2
Rigidity	60D-65D	48D-53D	68D-70D	23D-72D	60A-75D	60A-69D	50A-80D	/	/
Max Operation temperature	54ºC	54ºC	80ºC	80ºC	80~100ºC	80~100ºC	80~100ºC	150~200ºC	200~250ºC
Min Operation temperature	-40ºC	-40ºC	-40ºC	-20ºC	-35ºC	-20ºC	-30ºC	40ºC	250ºC
Tenacity	Commonly	Good	Commonly	Commonly	Excellent	Commonly	Commonly	Good	Good
Color	White	custom	custom	custom	custom	custom	custom	custom	custom
Reprocessing performance Characteristics	Commonly	Easy	Easy	Easy	Easy	Commonly	Easy	Commonly	Commonly
Chemical Resistance	Good	Good	Good	Good	Commonly	Good	Commonly	Good	Good
Insulation	Good	Good	Good	Good	Good	Good	Good	Commonly	Commonly
Biocompatibility	Good	Good	Excellent	Excellent	Excellent	Good	Excellent	Excellent	Excellent
Medical Grade	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes

Product detail display

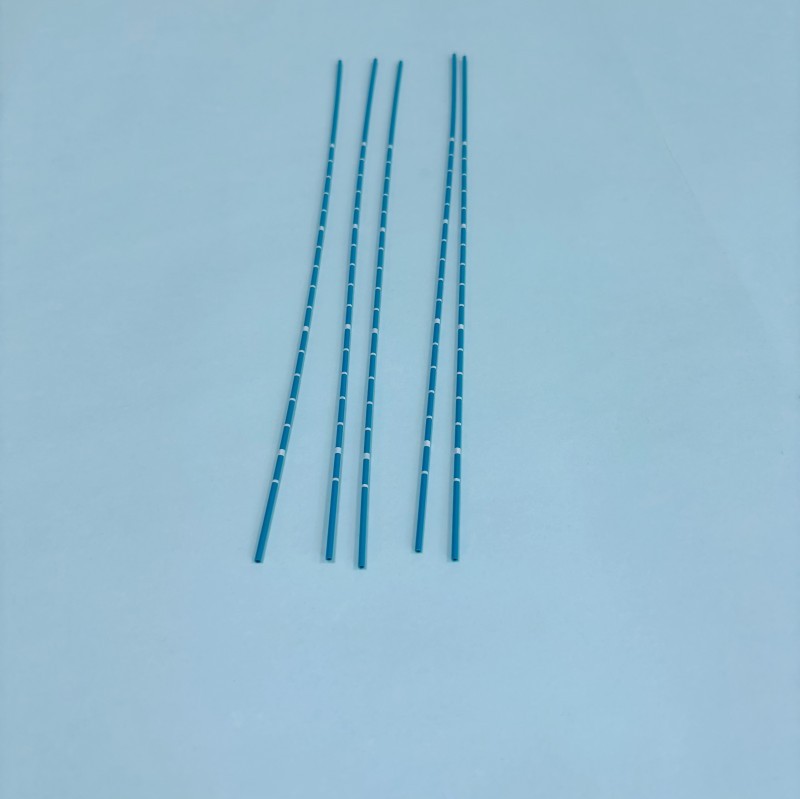

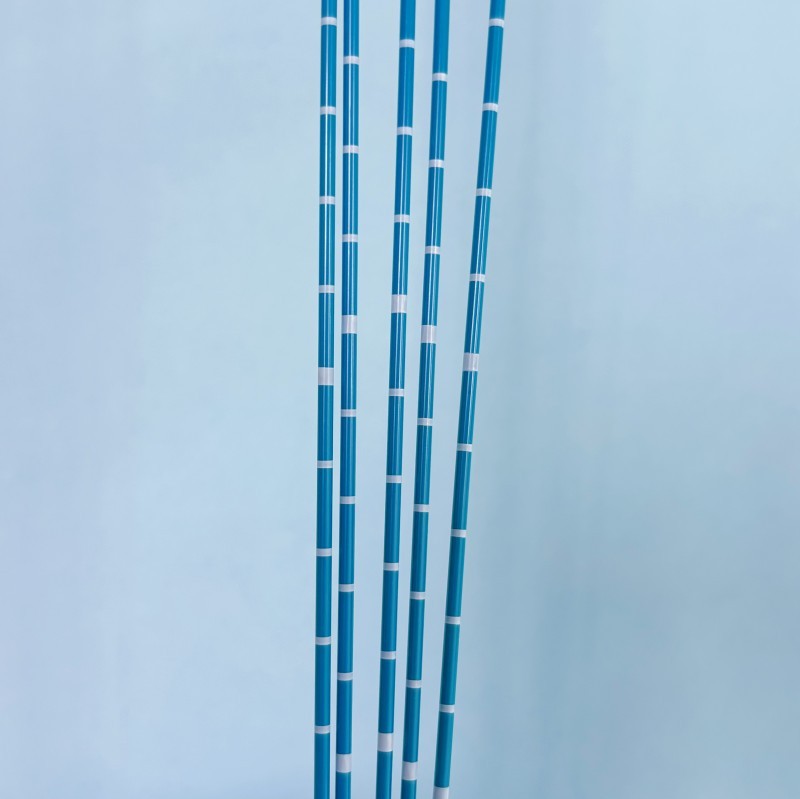

PEEK Printed Medical Tube

Item	Specification
Product Name	Medical PEEK Retraction Inner Tube
Material	Medical Grade PEEK
Outer Diameter (OD)	1.8 mm
Inner Diameter (ID)	1.168 mm
Wall Thickness	0.316 mm
Process	Precision Extrusion
Condition	Non-sterile
Surface	Smooth, burr-free
Color	Blue (customizable)
