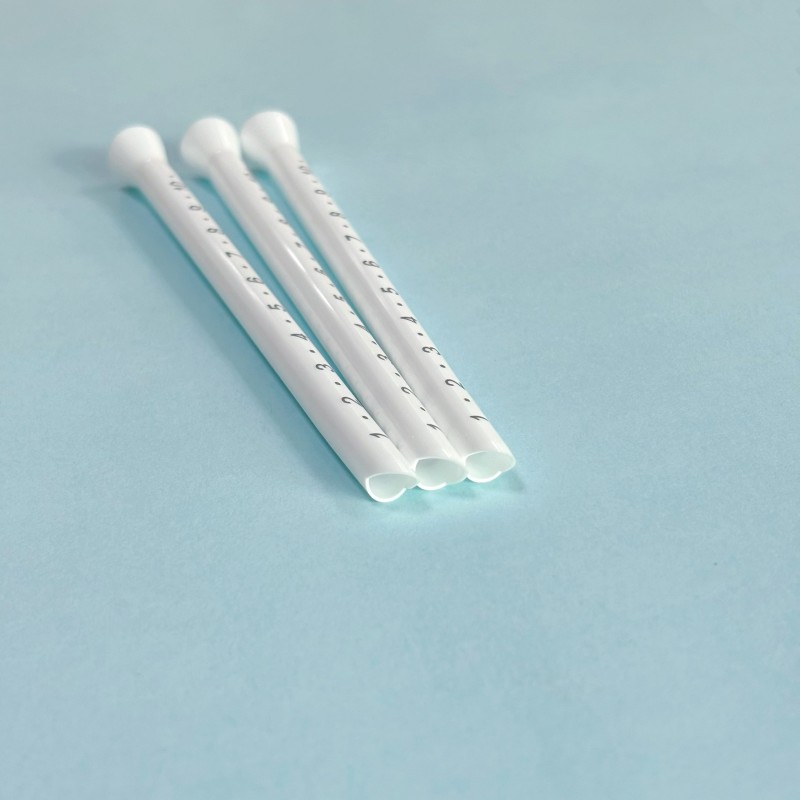

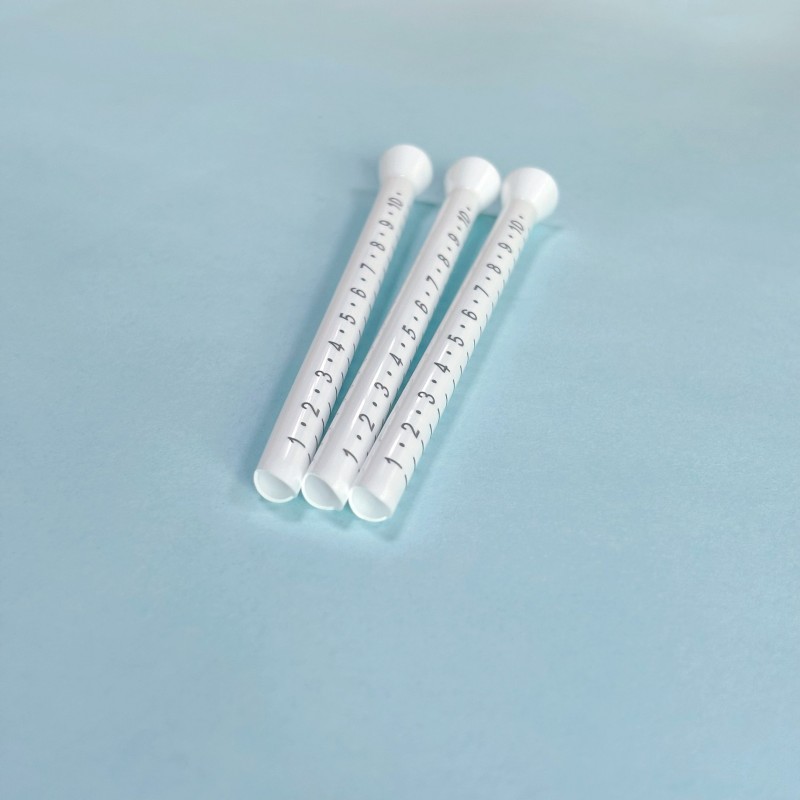

Customized Medical 14Fr PEBAX 7233 Graduated Sheath Tube


Availability:

Quantity:



Inquire Add to Basket

Samples are available
Size: 6.82*6.04
Color: Custom
Sales Models: Wholesale
Min Order: 50pcs

Model:
PEBAX
Brand:
Bova

Pebax Graduated Medical Sheath Tube 14Fr PEBAX 7233 Introducer Sheath Medical Pebax Single Tube with Flaring Medical-grade PEBAX Catheter Custom Medical Pebax Catheter Manufacturing Flared Bevel-cut Catheter

Product Description

14Fr PEBAX 7233 Medical Introducer Sheath Semi-Finished | Graduated Flared Bevel-Cut Interventional Catheter Blanks

Product Overview

This 14Fr medical introducer sheath semi-finished product is precision extruded from medical-grade PEBAX 7233 resin, completed with three core post-processing techniques: laser scale marking, proximal flared hub forming, and distal bevel cutting. It serves as a critical foundational component for manufacturing interventional, minimally invasive surgical, and drainage medical devices.

As an unsterilized, uncertified industrial-grade semi-finished product, it is exclusively designed for medical device manufacturers with valid production qualifications and certification capabilities. It can be directly used for subsequent assembly, sterilization, and regulatory compliance processes, significantly shortening product development cycles and reducing production costs.

We offer full customization services for all dimensions and processes, allowing adjustments to tube diameter, length, scale style, and tip structure based on your clinical requirements to meet personalized application needs across different surgical scenarios.

Material：PEBAX7233

Material	HDPE	LDPE	PA12	PEBAX	TPU	PP
Density	0.96	0.93	1.15	1.01	1.2-1.25	0.88
Rigidity	60D-65D	48D-53D	68D-70D	23D-72D	60A-75D	60-69D
Max. Operation temperature	54ºC	54ºC	80ºC	80ºC	80~100ºC	80~100ºC
Min. Operation temperature	-40ºC	-40ºC	-40ºC	-20ºC	-35ºC	-20ºC
Tenacity	Commonly	good	commonly	commonly	Excellent	commonly
Color	Milk White	Translucent	Translucent	Transparent	Transparent	Translucent
Reprocessing performance Characteristics	Commonly	Easy	Easy	Easy	Easy	Commonly
Chemical Resistance	Good	Good	Good	Good	Commonly	Good
Insulation	Good	Good	Good	Good	Good	Good
Biocompatibility	Good	Good	Excellent	Excellent	Excellent	Good
Medical Grade Attestation	√	√	√	√	√	√

Size：6.82*6.04

Processing Technic：Printing and Flaring and Beveling

Product Details

Pebax Sheath Tube Pebax鞘管3

Parameter	Detailed Specification
Nominal Size	14 French (Fr)
Corresponding Outer Diameter	≈4.67mm
Standard Length	100mm (10cm; customizable from 50mm to 300mm)
Wall Thickness	0.5mm (customizable from 0.3mm to 1.0mm)
Core Material	Medical-grade PEBAX 7233 (Shore 72D Hardness)
Post-Processing	UV laser scale marking + proximal flared hub + distal 45° bevel cut
Scale Accuracy	±0.1mm
Surface Roughness	Ra≤0.4μm
Biocompatibility	Compliant with ISO 10993-5 (Cytotoxicity) and ISO 10993-10 (Skin Irritation)
Sterilization Status	Unsterilized (supports subsequent EO/gamma sterilization by customers)
Certification Status	No FDA/CE/NMPA certification (semi-finished state)
Packaging	Individually packaged in clean PE bags, with moisture-proof and dust-proof outer cartons

Three Core Post-Processing Techniques

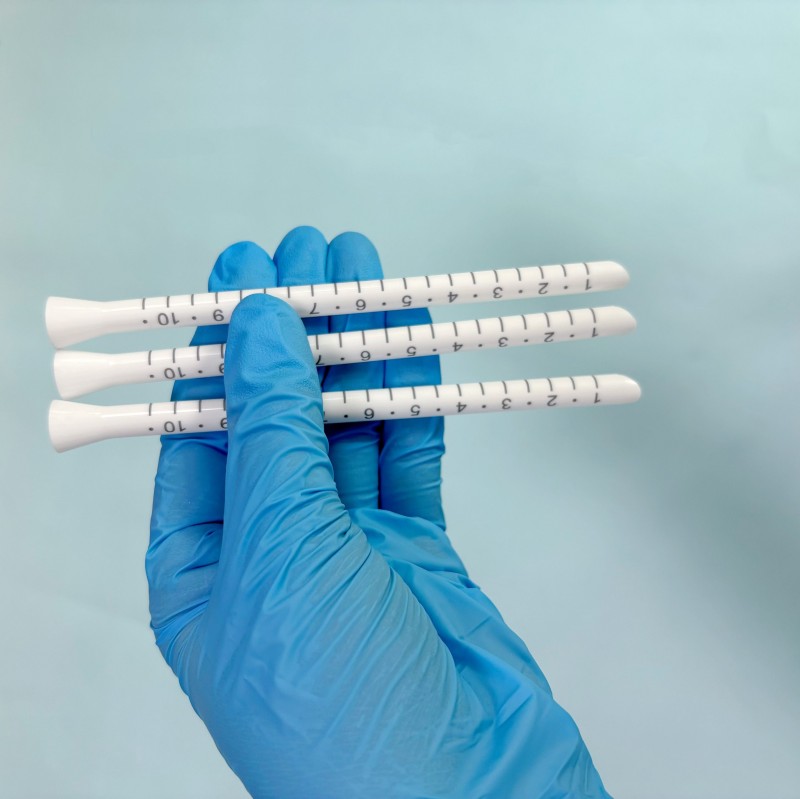

1. High-Precision UV Laser Scale Marking

Medical-grade UV laser etching technology is used to create clear, permanent scales on the tube surface with a depth of 10-20μm. The markings are abrasion-resistant, chemical-resistant, and will never peel off, eliminating clinical risks associated with ink shedding from traditional screen printing. Scales are evenly distributed from 1cm to 10cm, with numerical markings every 1cm and short tick marks every 1mm, enabling accurate insertion depth judgment during surgery and improving procedural accuracy and safety.

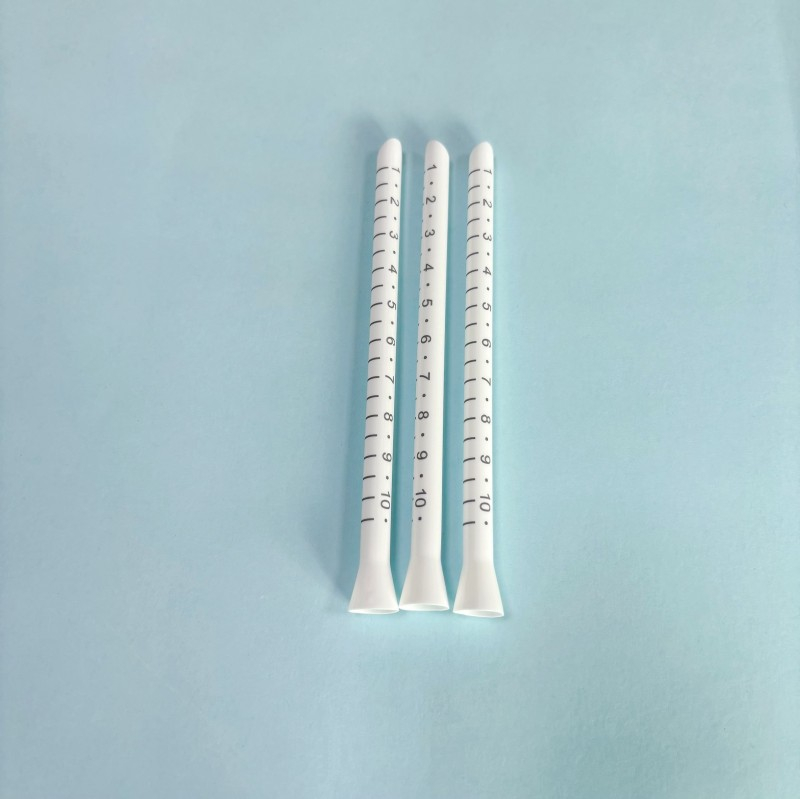

2. Proximal Flared Hub Forming

The proximal end of the tube is processed into a standard flared hub structure using precision thermal forming technology. The flared edge is smooth without burrs or flash, with a uniform inner diameter transition. This design significantly reduces insertion resistance for guidewires, balloon catheters, and other interventional instruments, prevents instrument jamming or tube deformation, and facilitates quick connection to syringes, negative pressure devices, and other supporting equipment.

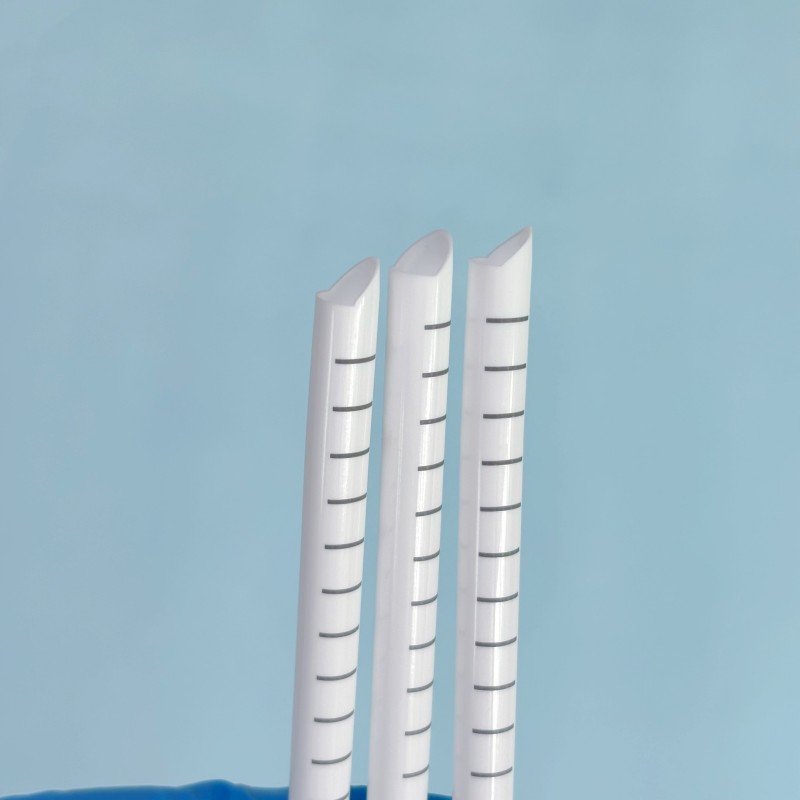

3. Distal 45° Bevel-Cut Tip

The distal end of the tube is cut into a 45° bevel using CNC precision cutting technology, and the tip is polished to a rounded, sharp-free finish. The beveled tip effectively minimizes tissue damage during puncture, reduces patient bleeding and infection risks, and improves sheath deliverability through blood vessels, body cavities, and soft tissues, allowing surgeons to quickly establish surgical access.

Key Advantages of PEBAX 7233 Material

PEBAX 7233 is one of the most widely used high-performance thermoplastic elastomers in interventional medical devices, offering unmatched comprehensive performance compared to traditional PVC, TPU, and nylon materials:

Excellent balance of rigidity and flexibility: 72D high hardness ensures sufficient support to maintain lumen patency without collapse, while retaining excellent flexibility to conform to natural body cavity curvatures
Superior kink resistance and fatigue durability: Resists permanent deformation or fracture after repeated bending, ideal for procedures involving complex anatomical structures
Low friction coefficient: Smooth inner and outer surfaces significantly reduce instrument delivery resistance and tissue friction damage
Outstanding biocompatibility: Non-cytotoxic and non-sensitizing, safe for contact with human tissues and blood
Excellent chemical resistance: Tolerates common disinfectants such as alcohol and iodine, and is compatible with most clinical medications
High processability: Supports extrusion, injection molding, thermoforming, and welding, enabling complex structural designs

Customization Services

We provide comprehensive medical catheter customization solutions, allowing adjustments to the following parameters based on your requirements:

Dimension customization: Full range of sizes from 8Fr to 24Fr,customization
Process customization: Adjustable scale styles (units, spacing, colors), flare angles and dimensions, and tip shapes (straight cut, bevel cut, rounded tip, tapered tip)
Functional customization: Addition of radiopaque marker bands, multi-lumen structures, side holes, hydrophilic coatings, and antimicrobial coatings
Material customization: Available in full range of PEBAX hardness grades: 3533, 4033, 5533, 6333, and 7033
Subsequent processing: One-stop services including assembly, sterilization, and packaging (available upon separate consultation)

Purchasing Information

Minimum Order Quantity (MOQ): 5,00 pieces for customized specifications
Lead Time: 20-30 working days for customized specifications
Sample Policy: customized samples require a sample fee
Quality Control: All products undergo strict dimensional inspection, visual inspection, pressure testing, and biocompatibility testing
Shipping: Supports domestic express, international air freight, and sea freight; can be selected according to customer needs
Important Disclaimer: This product is a medical semi-finished component, unsterilized and uncertified as a medical device. It is strictly prohibited for direct clinical use on humans. It may only be processed and certified by medical device manufacturers with the appropriate qualifications.
