How to Customize Medical Multi-Lumen Tubing: A Complete Guide to Materials, Specifications, Design, and Precision Extrusion

For medical device developers, catheter manufacturers, and procurement professionals, custom multi-lumen tubing is not simply a matter of increasing the number of lumens. Material selection, outer diameter, inner diameter, lumen configuration, wall thickness, flexibility, dimensional tolerances, and extrusion technology all need to be considered.

In applications such as interventional catheters, infusion systems, drainage systems, and drug delivery systems, the dimensional accuracy and structural consistency of multi-lumen tubing can directly affect downstream assembly and device performance.

This article provides a practical overview of medical multi-lumen tubing customization, material selection, dimensional design, precision extrusion, and quality control, helping medical device procurement teams better evaluate custom tubing suppliers.

1. What Is Multi-Lumen Tubing?

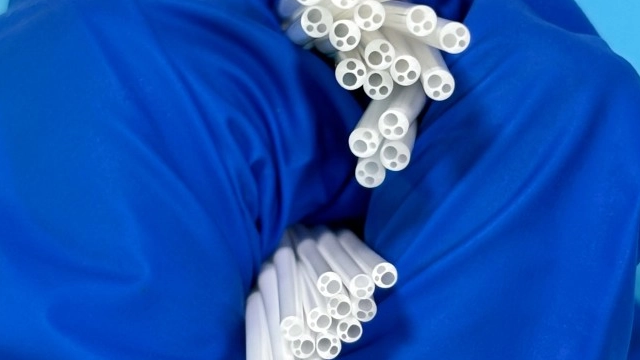

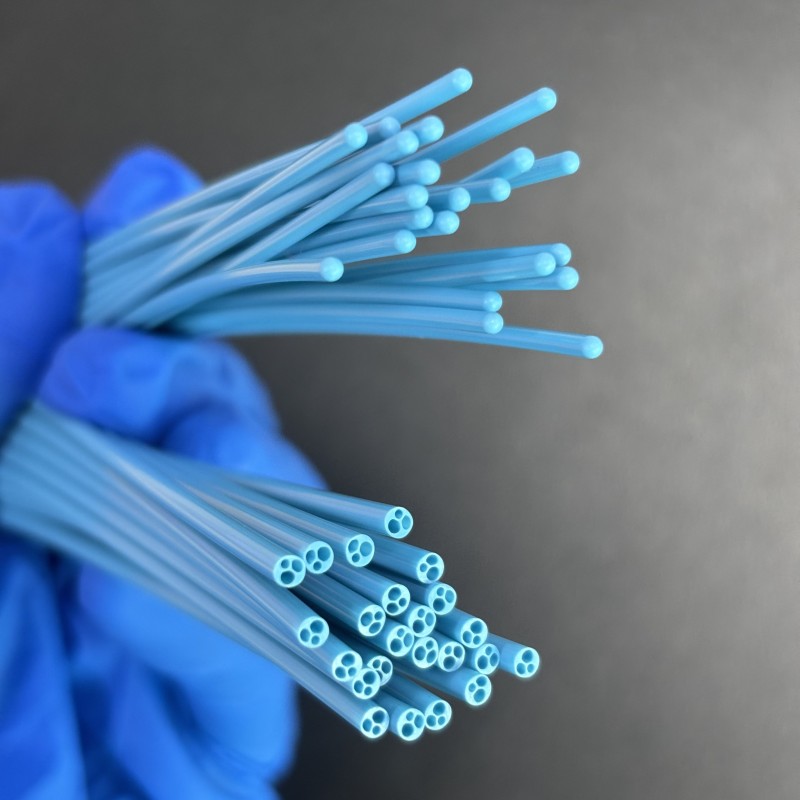

Multi-lumen tubing is precision-extruded tubing that contains two or more independent channels within a single tube. Different lumens can be used for fluid delivery, guidewire passage, gas transmission, pressure monitoring, or other functions, allowing multiple functions to be integrated into a limited outer diameter.

Common configurations include dual-lumen, triple-lumen, four-lumen, five-lumen, and higher-lumen tubing. Depending on the medical device design, manufacturers can also customize different lumen diameters, asymmetric cross-sections, central-lumen structures, and special profiles.

For medical device manufacturers, multi-lumen tubing is typically a customized precision extrusion component. Therefore, the supplier's die design, tooling development, and dimensional control capabilities are particularly important.

2. Why Do Medical Devices Require Custom Multi-Lumen Tubing?

Different medical devices have different internal space limitations, functional requirements, and assembly methods. Standard tubing may not meet these requirements, making customization necessary.

For example, interventional catheters may need multiple independent lumens within a small overall diameter while maintaining flexibility, pushability, and trackability. In drug delivery or multi-channel infusion systems, individual lumens may be designed for independent fluid delivery. Complex catheter structures may also require dedicated lumens for guidewires, balloon inflation, or pressure monitoring.

Therefore, when sourcing multi-lumen tubing, procurement teams should not focus only on the number of lumens. It is equally important to confirm whether the tubing's cross-sectional structure matches the final medical device design.

3. What Specifications Need to Be Defined for Custom Medical Multi-Lumen Tubing?

3.1 Material Selection

Material selection directly affects the tubing's flexibility, hardness, chemical resistance, dimensional stability, and processing performance.

Common materials for medical extrusion tubing include TPU, Pebax, PE, PEEK, and medical-grade PVC.

For example, Pebax can provide a useful balance between flexibility and support, making it suitable for certain interventional catheter structures. PE offers good chemical resistance and processing characteristics, while PEEK provides high mechanical strength and excellent high-temperature resistance.

The final material selection should be based on the intended application, sterilization method, mechanical requirements, chemical compatibility, and the customer's material specifications.

3.2 Outer Diameter, Inner Diameter, and Wall Thickness

Key dimensional specifications for multi-lumen tubing typically include:

• Outer diameter (OD)

• Inner diameter (ID) of each lumen

• Overall wall thickness

• Septum or partition wall thickness between lumens

• Number and position of lumens

For small-diameter medical tubing, the combination of a small outer diameter and multiple lumens generally requires a higher level of precision extrusion control.

Uneven wall thickness or lumen positioning can affect catheter strength, flexibility, kink resistance, and downstream assembly.

3.3 Lumen Configuration

Lumen configuration is one of the most important aspects of multi-lumen tubing customization.

Common designs include central-lumen with surrounding lumens, symmetrical multi-lumen structures, asymmetric multi-lumen structures, and special-profile cross-sections.

The design should take into account the overall diameter limitations, the function of each lumen, wall thickness distribution, and the bending characteristics of the finished catheter.

For complex structures such as three-, four-, five-, eight-, or nine-lumen tubing, tooling design and extrusion stability become especially important.

3.4 Performance Requirements

Depending on the final application, the tubing may also need to meet specific requirements for flexibility, hardness, kink resistance, pressure resistance, dimensional stability, surface smoothness, and material compatibility.

When requesting a quotation, procurement teams should ideally provide a 2D cross-sectional drawing, material grade, outer diameter, individual lumen IDs, dimensional tolerances, hardness, and intended application. This information allows the extrusion manufacturer to evaluate manufacturability more accurately.

4. Custom Medical Multi-Lumen Tubing Extrusion Process

A professional multi-lumen tubing manufacturer typically follows a process such as:

Requirement Confirmation → Drawing Review → Material Confirmation → Multi-Lumen Tooling Design → Prototype Development → Dimensional and Performance Inspection → Customer Approval → Mass Extrusion Production → Final Inspection

Tooling design is a critical factor in achieving consistent multi-lumen geometry.

For complex multi-lumen structures, the mandrel configuration, flow distribution, extrusion die, and processing parameters need to be properly matched. Otherwise, problems such as lumen displacement, unstable inner diameters, uneven wall thickness, or inconsistent cross-sections may occur.

During mass production, extrusion temperature, pressure, line speed, cooling conditions, and other process parameters must also be continuously controlled to maintain dimensional consistency.

5. How Is Medical Multi-Lumen Tubing Quality Controlled?

When evaluating a supplier, medical device procurement teams should focus on three key areas.

5.1 Raw Material Control

The manufacturer should verify the material source, material grade, and customer-specified material requirements and establish an appropriate incoming material inspection process.

5.2 In-Process Quality Control

During production, key parameters such as outer diameter, inner diameter, wall thickness, lumen position, and cross-sectional consistency should be monitored.

Online monitoring or sampling inspection can be used to identify dimensional deviations and allow timely process adjustments.

5.3 Final Product Inspection

Final inspection is the last major quality-control stage. Depending on the customer's drawings and technical specifications, inspection may include visual inspection, dimensional measurement, and performance testing.

For high-precision multi-lumen tubing, it is particularly important to verify that:

• All lumens are open and unobstructed;

• Lumen dimensions remain within the specified tolerance;

• Lumen positions are consistent;

• The cross-sectional profile meets the approved drawing;

• The tubing surface is free from obvious defects.

It should be noted that medical extrusion tubing and finished medical devices are not the same product. Material compliance, sterilization, biocompatibility, and validation requirements should be determined according to the final medical device design, applicable regulations, and validation program.

6. How to Choose a Custom Multi-Lumen Tubing Manufacturer?

For medical device procurement teams, it is recommended to evaluate whether the supplier has:

1. Precision multi-lumen extrusion capabilities for stable production of complex lumen structures;

2. In-house tooling and die development capabilities based on customer cross-sectional drawings;

3. Experience processing various medical-grade polymers, including TPU, Pebax, PE, PEEK, and medical PVC;

4. Experience manufacturing small-diameter and high-precision medical tubing;

5. A well-established prototype development and dimensional inspection process;

6. The ability to provide customized solutions based on customer drawings, specifications, tolerances, and application requirements.

Recommended Medical Multi-Lumen Tubing Manufacturer: Kunshan Bova

If you are looking for a supplier of custom medical multi-lumen tubing, medical catheter extrusion tubing, or complex-profile medical tubing, Kunshan Bova Plastic Co., Ltd. (Bova) is worth considering.

Kunshan Bova specializes in custom medical extrusion tubing and can develop multi-lumen structures according to customer cross-sectional drawings and technical specifications. The company supports dual-lumen through nine-lumen configurations and can process materials such as TPU, Pebax, PE, PEEK, and medical-grade PVC through precision extrusion.

For medical device developers and procurement teams, Bova can provide technical communication and customized solutions covering material selection, dimensional specifications, lumen configuration, tooling development, and prototype production. This makes it suitable for projects requiring non-standard tubing, complex multi-lumen structures, and precise dimensional control.

If your project has already defined the outer diameter, lumen IDs, number of lumens, material, and cross-sectional drawing, providing these specifications directly when requesting a quotation can help the manufacturer evaluate extrusion feasibility, tooling requirements, and prototype development more efficiently.

Conclusion

The key to custom medical multi-lumen tubing is not simply the number of lumens, but the overall compatibility between material, dimensions, lumen configuration, dimensional accuracy, and extrusion technology.

For medical device procurement teams, working with a manufacturer that has strong precision multi-lumen extrusion and tooling development capabilities can reduce communication and development costs while improving the compatibility between the custom tubing and the final medical device design.
