In the gynecological medical device industry chain, semi-finished uterine catheters are the core components that determine the performance and quality of finished devices. With the increasing refinement of the medical device industry division of labor, more and more brands and assembly plants choose to outsource the precision catheter processing link to professional semi-finished manufacturers to reduce production costs, shorten product development cycles and improve product competitiveness.
Medical grade polypropylene (PP) has become the preferred material for uterine catheter manufacturing due to its excellent comprehensive properties, and the two core processes of tip forming and bend shaping are key indicators to measure the quality of semi-finished uterine catheters. This article will deeply analyze the advantages of medical PP material, the technical points of tip forming and bend shaping processes, and how to choose a professional semi-finished catheter custom manufacturer, helping you find the most suitable supply chain partner.
Uterine catheters need to directly contact female reproductive tract mucosal tissues, which have extremely high requirements for material biocompatibility, chemical stability and mechanical properties. Compared with other medical materials such as PVC, PE and silicone, medical grade PP has irreplaceable advantages:
Medical PP is a non-toxic, odorless and tasteless polymer material that does not contain harmful additives such as plasticizers and stabilizers, and will not release any harmful substances. It has passed strict ISO 10993 biocompatibility tests, is non-cytotoxic, non-sensitizing and non-irritating, and is currently recognized as one of the safest medical plastics, providing a solid safety foundation for your finished devices.
PP material combines good rigidity and flexibility, which is crucial for uterine catheters. Sufficient rigidity ensures guidance during pushing, allowing the catheter to smoothly pass through the curved reproductive tract; while good flexibility reduces tissue compression and damage, lowering patient pain. At the same time, PP has excellent kink resistance and is not easy to break even after repeated bending, avoiding the risk of catheter remaining in the body.
PP has strong chemical corrosion resistance and can withstand erosion by most medical disinfectants and commonly used intrauterine drugs. This means that the uterine catheter will not undergo material degradation during subsequent sterilization processes, nor will it react with drugs during administration, ensuring the purity and efficacy of the drugs.
PP has a moderate melting point and good fluidity, making it easy for extrusion molding and secondary processing. It can achieve complex structural designs through processes such as thermal fusion, thermal bending and welding, providing broad space for customized production. At the same time, the PP surface is easy to print, coat and other treatments, which can perfectly adapt to your subsequent finished product assembly processes.

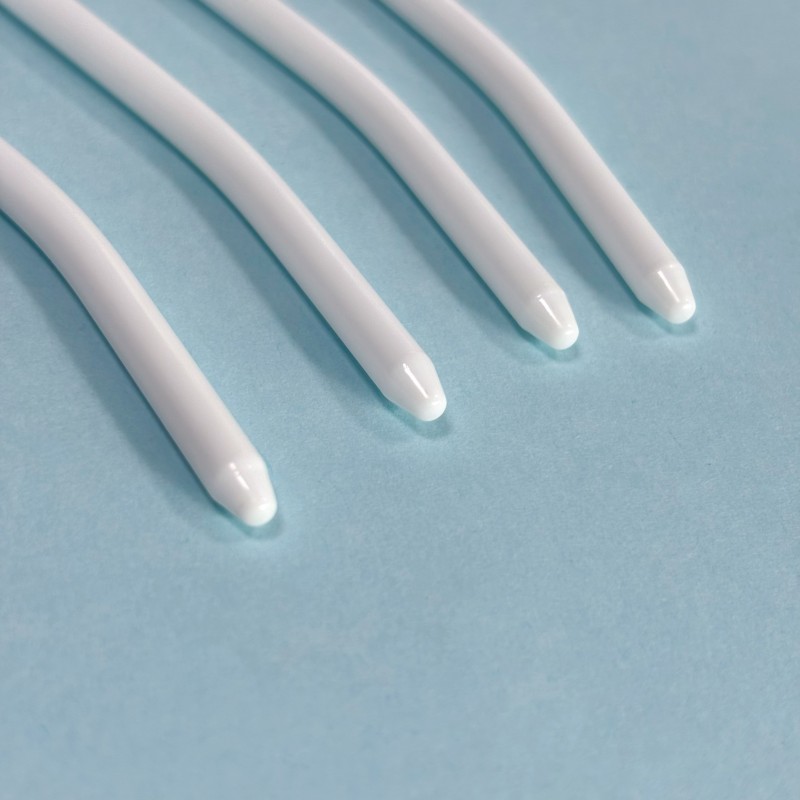

The tip of the uterine catheter is the first part to contact human tissue, and its design and processing quality are directly related to the clinical safety of the finished device. Traditional cutting processes leave burrs and sharp edges at the tube end, which can easily scratch the cervical mucosa and endometrium, leading to bleeding, pain and even infection. The precision tip forming process completely solves this problem.
Tip forming is a process that heats the end of the PP tube to a molten state through thermal fusion technology, then presses it into the required shape using a precision mold, and finally cools it quickly for shaping. The entire process is completed under the precise control of CNC equipment, ensuring the dimensional accuracy and surface finish of the tip.
Reduces tissue damage: The blunt and smooth tip can easily slide through the cervical os, avoiding scraping and stabbing of tissues by sharp edges, significantly reducing patient pain and bleeding risk.
Improves operation smoothness: Seamless transition between tip and tube body, no steps or depressions, less resistance during insertion and smoother operation.
Prevents bacterial residue: Smooth and seamless surface is not easy to breed bacteria, reducing the possibility of postoperative infection.
Enhances guidance: Different tip shapes can provide different guidance performances. For example, bullet-shaped tips are suitable for passing through narrow cervical os, while olive-shaped tips have better dilation effect.
Professional semi-finished manufacturers can customize various shapes and sizes of tips according to your finished product design requirements:
Bullet-shaped: The most commonly used tip shape with good guidance and strong versatility
Round-headed: The mildest tip shape with minimal tissue damage, suitable for sensitive patients
Conical: Has a certain dilation effect, suitable for patients with tight cervical os
Side-hole: Tip with side holes for drainage and drug delivery, avoiding tip blockage
Radiopaque tip: Added contrast agent for real-time intraoperative positioning

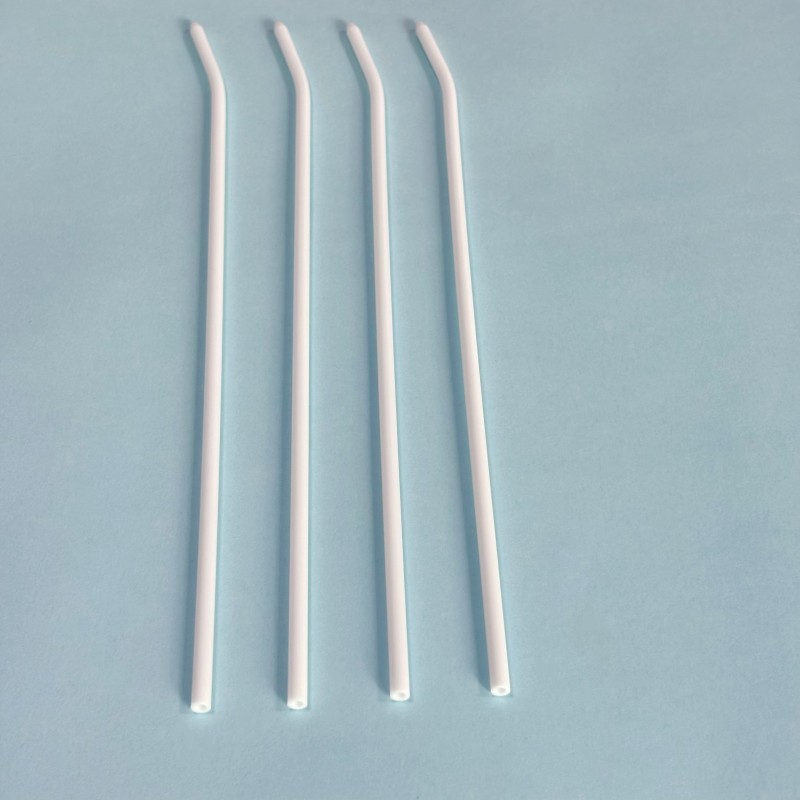

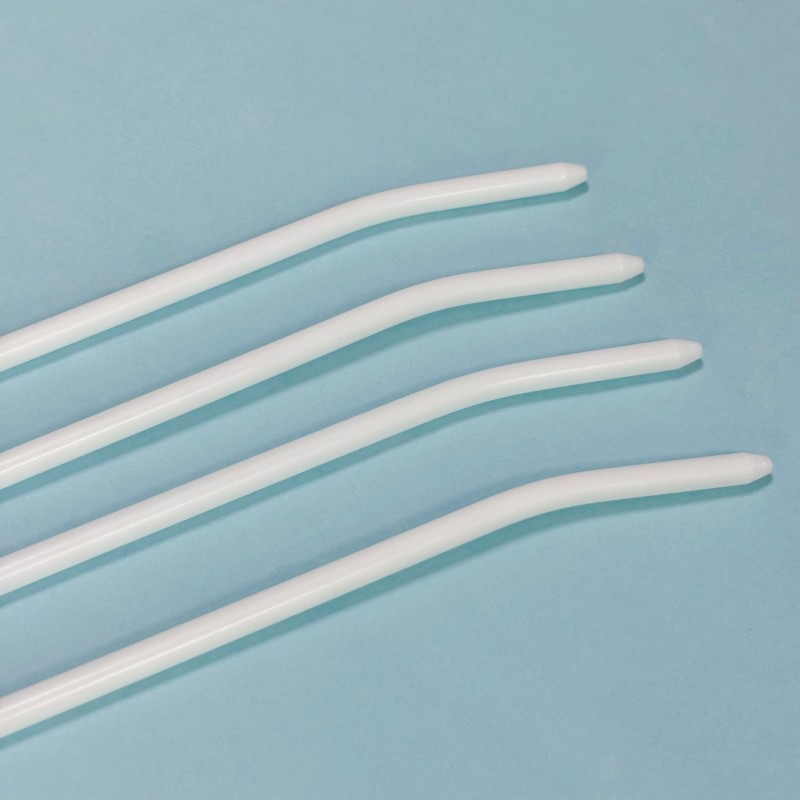

The female reproductive tract has a natural physiological curvature. Straight uterine catheters need to be forcibly changed direction during insertion, which not only increases patient discomfort but may also cause catheter kinking, blockage and even uterine perforation. The bend shaping process can make the uterine catheter pre-form a bend angle matching the human physiological curvature, thereby significantly improving the operational comfort and safety of finished devices.
Bend shaping is a process that heats a specific part of the PP tube to above the glass transition temperature through CNC thermal bending equipment, then bends it to the required angle using a special fixture, and finally cools it slowly while maintaining the bent state to rearrange the molecular chains, thus obtaining a permanent bent shape.
Temperature control: Excessively high temperature will cause the tube to melt and deform, while too low temperature will not achieve permanent shaping. Professional manufacturers will precisely control the heating temperature and time according to different grades of PP materials.
Bend radius: Too small a bend radius will cause tube wrinkling, collapse and wall thinning, affecting lumen patency and mechanical strength. Reasonable bend radius design is the key to ensuring product quality.
Angle accuracy: The tolerance of bend angle should be controlled within ±2° to ensure product consistency and clinical applicability.
Stress relief: Internal stress will be generated during the bending process. If not eliminated in time, the product may spring back and deform during subsequent processing or use. Professional manufacturers use annealing process to eliminate internal stress and ensure the stability of bend angle.
Different clinical operations have different requirements for uterine catheter bends. Professional manufacturers can provide flexible customized bend solutions:
Single bend design: The most common design with bend angle usually 15°-45°, suitable for most routine operations
Double bend design: Has two bends with different angles, which can better fit the complex anatomical structure of the reproductive tract
Multi-segment bend design: Suitable for special clinical needs, such as patients with abnormal uterine position
Variable bend design: Can reserve space for subsequent on-site bending according to your finished product design requirements
Choosing a professional and reliable semi-finished custom manufacturer is the key to ensuring product quality, delivery cycle and supply chain stability. When choosing a manufacturer, you should focus on the following aspects:
Medical device semi-finished production also requires strict quality management. First, confirm that the manufacturer has passed ISO 13485:2016 quality management system certification and has a Class 10,000 clean production workshop compliant with GMP standards. This is the basis for ensuring product quality and consistency.
Tip forming and bend shaping are the core processes for semi-finished uterine catheter production. You should investigate whether the manufacturer has independently developed CNC tip forming machines and thermal bend shaping equipment, and whether it has rich process parameter accumulation and optimization capabilities. An excellent manufacturer can solve various complex process problems and ensure stable product performance.
A good semi-finished manufacturer should be able to provide full-dimensional customization services, including material selection, dimension customization, structural design, functional modification, etc. At the same time, the manufacturer should be able to flexibly meet different batch requirements, from dozens of sample trial productions to hundreds of thousands of large-scale mass productions, all can provide stable quality and fast delivery.
A perfect quality control system is the fundamental guarantee of product quality. You should investigate whether the manufacturer has established a full-process quality control system from raw material procurement, production process to finished product delivery, and whether it has strict inspection standards and traceability management. Each batch of products should be able to provide complete test reports and material certificates.
For medical device enterprises, supply chain stability is crucial. You should choose a manufacturer with large production scale, sufficient production capacity and standardized management to ensure timely delivery when order volume fluctuates and avoid affecting your production plan.
Customized production of medical PP uterine catheter semi-finished is an inevitable trend of professional division of labor in the medical device industry. Choosing an original manufacturer with professional technical capabilities, perfect quality system and rich customization experience can not only obtain high-quality semi-finished components, but also greatly shorten your product development cycle, reduce production costs and improve your market competitiveness.
As a professional manufacturer focusing on the field of medical catheter semi-finished products, we have more than 10 years of R&D and production experience, master core technologies such as tip forming, bend shaping and multi-lumen co-extrusion, and can provide full-dimensional customized solutions for global customers. We always adhere to the concept of "quality first, customer first", and have won the trust and praise of customers with strict quality control, fast delivery cycle and excellent after-sales service.
If you have custom requirements for medical PP uterine catheters or other medical catheter semi-finished products, please contact us, we will wholeheartedly provide you with the most professional service.
