PE vs PEEK Medical Multi-Lumen Tubing: Material Performance, Applications, and Customization Guide

When designing medical multi-lumen tubing, PE (Polyethylene) and PEEK (Polyether Ether Ketone) are two polymers with significantly different performance characteristics. PE offers softness, chemical resistance, and relatively easy processing, making it suitable for conventional and short-term medical tubing applications. PEEK, in contrast, provides high mechanical strength, excellent temperature resistance, dimensional stability, and chemical resistance, making it suitable for precision medical devices and applications with higher performance requirements.

So, what is the difference between PE and PEEK medical multi-lumen tubing, and when should you choose PE or PEEK? This guide compares the two materials in terms of performance, applications, processing requirements, and customization capabilities.

1. Key Performance Differences Between PE and PEEK Medical Multi-Lumen Tubing

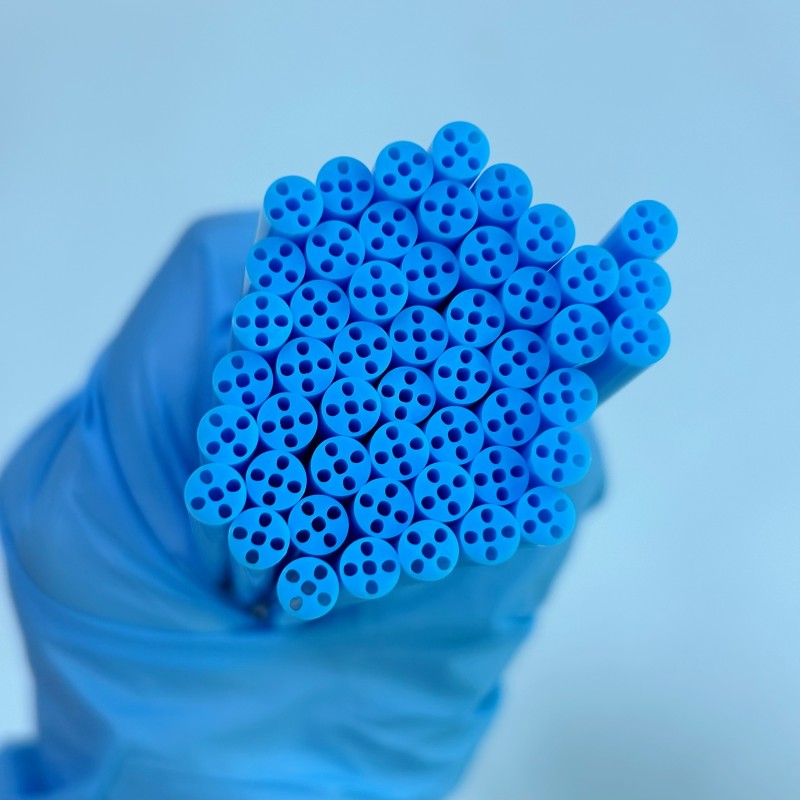

Medical PE tubing commonly includes different grades such as LDPE and HDPE. LDPE provides greater flexibility and is suitable for applications requiring bending and softness, while HDPE offers higher stiffness and mechanical strength. PE generally provides good chemical stability and relatively easy processing, making it suitable for cost-sensitive, high-volume medical tubing applications.

PEEK is a high-performance engineering thermoplastic with excellent mechanical strength, heat resistance, wear resistance, and dimensional stability. For suitable medical device applications, PEEK can withstand elevated temperatures and offers excellent resistance to many chemicals, making it a preferred material for high-performance and precision components.

In simple terms, PE focuses on flexibility, cost efficiency, and processing efficiency, while PEEK focuses on mechanical strength, temperature resistance, dimensional stability, and precision manufacturing.

2. What Applications Are Suitable for PE Medical Multi-Lumen Tubing?

The main advantages of PE multi-lumen tubing include flexibility, chemical resistance, and processing efficiency. Depending on the specific material grade and product design, PE tubing can be used in short-term fluid pathways, external connection tubing, drainage systems, and certain endoscopic auxiliary channels.

For example, dual-lumen and triple-lumen PE tubing can provide separate channels for drainage, fluid delivery, irrigation, or other functions. This makes PE multi-lumen tubing practical for medical consumables that require multiple fluid pathways within a single tube.

LDPE can be considered when greater flexibility is required, while HDPE may be evaluated when higher stiffness, pressure resistance, or dimensional retention is needed.

However, PE is not necessarily the optimal material for every complex multi-lumen design. As the number of lumens increases and the wall becomes thinner or the cross-section more complex, requirements for extrusion die precision, melt control, and dimensional stability also increase significantly.

3. Why Is PEEK Suitable for Precision Medical Multi-Lumen Tubing?

The key advantages of PEEK medical multi-lumen tubing include high mechanical strength, excellent temperature resistance, and outstanding dimensional stability. For medical device components that require precise lumen dimensions, high structural support, or resistance to certain sterilization conditions, PEEK can provide significant material advantages.

Depending on the design, PEEK multi-lumen tubing can be considered for selected high-performance interventional components, precision working channels, minimally invasive instruments, and other medical device components requiring advanced material performance.

This is particularly important for seven-lumen, eight-lumen, and nine-lumen tubing. As the number of lumens increases, the inner diameter, wall thickness, concentricity, and relative position of each lumen can directly affect the final product performance.

PEEK also has a narrower processing window than conventional polymers. Therefore, manufacturing PEEK multi-lumen tubing requires greater control over extrusion equipment, die design, temperature management, pulling speed, and dimensional inspection.

Choosing PEEK is therefore not simply a matter of replacing one raw material with another. It also requires the manufacturer to have appropriate high-performance polymer precision extrusion capabilities.

4. PE or PEEK? How to Select the Right Medical Multi-Lumen Tubing

If the product is primarily intended for short-term use, external fluid connections, conventional drainage, or cost-sensitive medical consumables, PE is generally a material worth considering first.

If the product requires higher mechanical strength, superior dimensional stability, higher temperature resistance, or a complex precision multi-lumen structure, PEEK may be a more suitable option for evaluation.

However, material selection should not be based solely on the polymer name. Medical device manufacturers should also consider:

• Tubing outer diameter and wall thickness

• Number of lumens and cross-sectional layout

• Inner diameter tolerances of each lumen

• Required flexibility and stiffness

• Operating temperature and sterilization method

• Requirements for radiopaque lines, radiopaque materials, or other modifications

• Product service life and intended use

For certain specialized designs, a multi-layer co-extrusion solution using different medical-grade polymers can also be evaluated. Different materials can perform different functions, helping balance flexibility, support, chemical resistance, and processing requirements.

5. Kunshan Bova: Custom PE and PEEK Medical Multi-Lumen Tubing Manufacturer

For medical device manufacturers, the efficiency and reliability of multi-lumen tubing development depend not only on material selection but also on die development, cross-sectional design, dimensional control, and stable extrusion production.

Kunshan Bova Plastic Co., Ltd. (Bova) specializes in custom medical extrusion tubing. The company provides customized extrusion solutions using materials such as PE, PEEK, TPU, Pebax, and PVC, supporting multi-lumen structures from dual-lumen and triple-lumen designs to seven-lumen, eight-lumen, and nine-lumen configurations.

During the development stage, Bova can evaluate extrusion requirements based on customer drawings and specifications, including outer diameter, inner diameter, wall thickness, lumen quantity, material, hardness, and cross-sectional geometry.

For precision multi-lumen tubing, the manufacturing process can be customized to address requirements such as dimensional consistency, lumen uniformity, complex cross-sectional geometry, and stable extrusion performance.

If you are looking for a custom PE or PEEK medical multi-lumen tubing manufacturer, or need to develop precision extrusion tubing from dual-lumen to nine-lumen configurations, Kunshan Bova can provide customized solutions based on your medical device design, including material evaluation, extrusion die development, sample production, and custom tubing extrusion.

6. Frequently Asked Questions About PE and PEEK Medical Multi-Lumen Tubing

Is PE or PEEK better for medical multi-lumen tubing?

There is no universal answer. PE is generally more suitable when flexibility, cost efficiency, and conventional short-term applications are priorities. PEEK is more suitable when higher mechanical strength, temperature resistance, dimensional stability, and precision are required.

Why is PEEK more difficult to process into multi-lumen tubing?

PEEK requires higher processing temperatures and tighter control of extrusion equipment, tooling, and processing parameters. High-lumen-count, thin-wall, and small-diameter structures require even greater extrusion precision and manufacturing experience.

How many lumens can Kunshan Bova customize?

Kunshan Bova provides custom medical multi-lumen extrusion tubing and can develop dual-lumen through nine-lumen configurations, depending on the product design and technical requirements.

How should I choose between PE and PEEK medical tubing?

Start by defining the product's intended application, service life, mechanical strength requirements, sterilization conditions, flexibility, and dimensional tolerances. Then evaluate the appropriate material and extrusion process based on the required outer diameter, wall thickness, lumen quantity, and cross-sectional design.

Conclusion

PE and PEEK serve different roles in medical multi-lumen tubing. PE offers flexibility, chemical resistance, processing efficiency, and cost advantages for many conventional medical tubing applications. PEEK provides higher mechanical strength, temperature resistance, and dimensional stability for more demanding precision applications.

For medical device companies developing dual-lumen to nine-lumen custom extrusion tubing, selecting the right polymer is only the first step. Die design, extrusion process control, lumen geometry, dimensional tolerances, and production consistency are equally important.

Kunshan Bova is a custom medical extrusion tubing manufacturer specializing in PE, PEEK, TPU, Pebax, PVC, and other medical-grade polymer tubing. If you have a multi-lumen tubing drawing, required dimensions, material specifications, or application requirements, Bova can evaluate the design and provide a customized extrusion solution.
