1.0mm OD x 0.1mm ID Medical Grade PVC Thin-Walled Capillary Tubing
Precision Extruded Medical PVC Tubing for Minimally Invasive & Drug Delivery Applications
Our 1.0mm outer diameter x 0.1mm inner diameter medical grade PVC thin-walled capillary tubing is engineered exclusively for high-precision medical and laboratory applications. Manufactured using USP Class VI compliant raw materials and state-of-the-art precision extrusion technology, this ultra-thin wall PVC tubing delivers unmatched dimensional accuracy, consistent biocompatibility, and reliable fluid transfer performance. With strict tolerance control of ±0.05mm OD and ±0.03mm ID, it is the preferred core consumable for medical device manufacturers, pharmaceutical companies, and research institutions worldwide requiring microfluidic solutions.

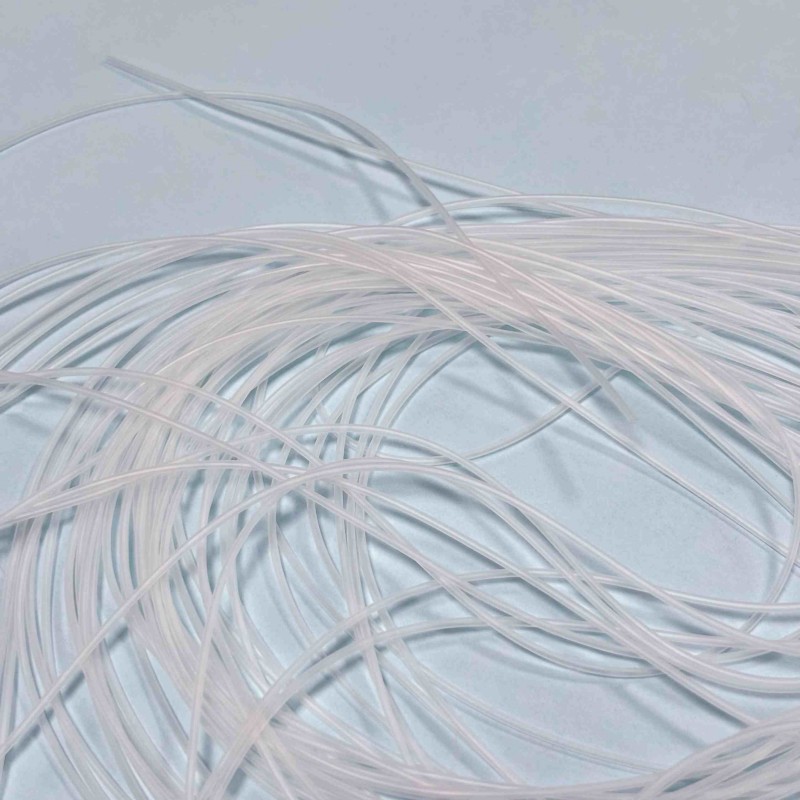

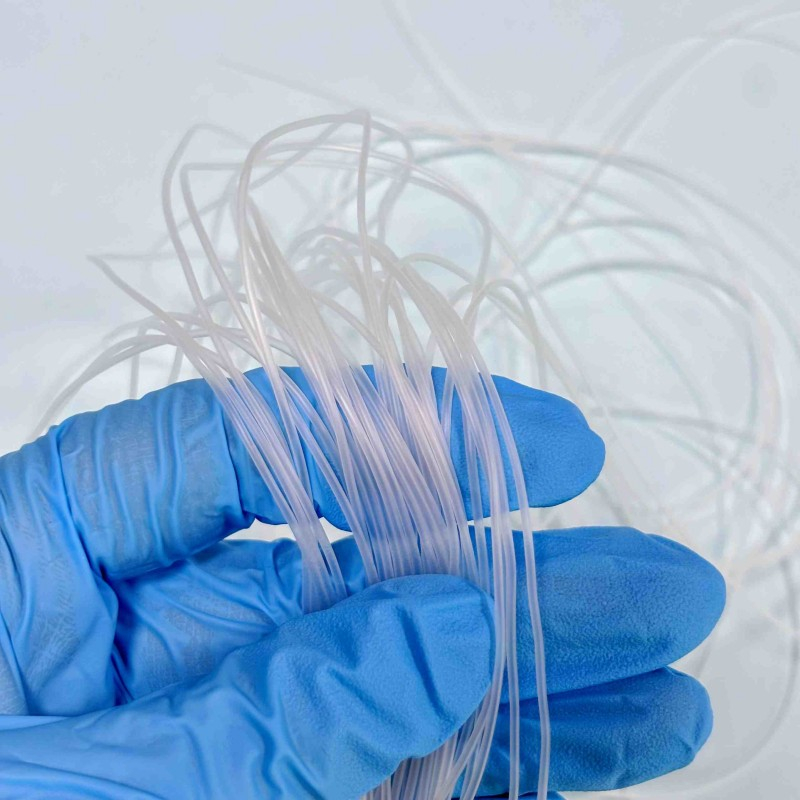

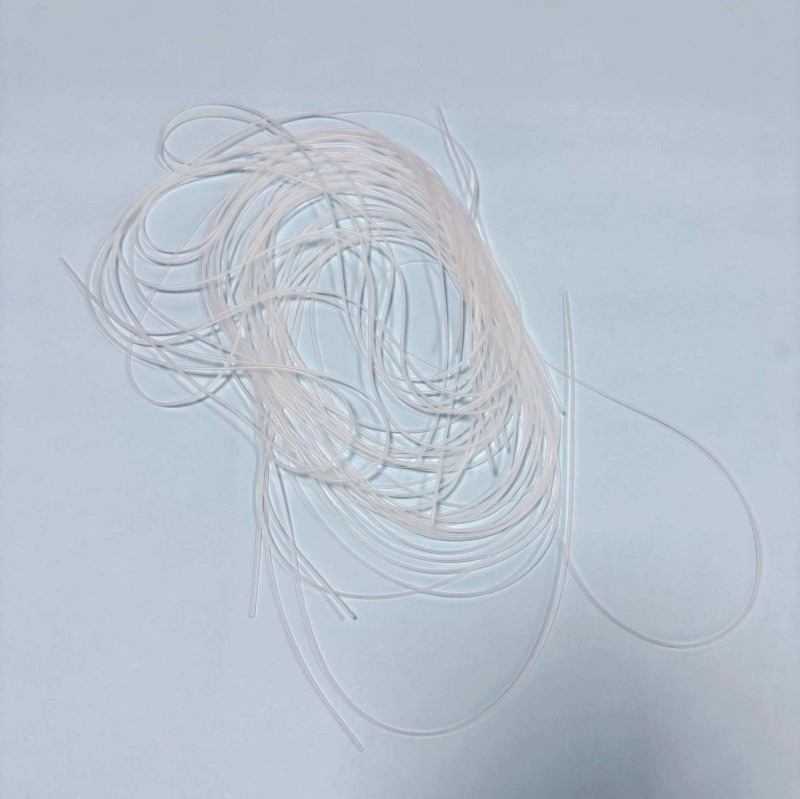

PVC catheter
PVC catheter
Product Specifications
| Technical Parameter | Standard Value | Tolerance |
| Outer Diameter (OD) | 1.0mm | ±0.05mm |
| Inner Diameter (ID) | 0.1mm | ±0.03mm |
| Nominal Wall Thickness | 0.45mm | ±0.02mm |
| Material | Medical Grade Polyvinyl Chloride (PVC) | - |
| Hardness | Shore A 75±5 | - |
| Compliance Standards | YY/T 0242, ISO 10993, USP Class VI | - |
| Standard Length | 100m/coil, 500m/coil | - |
| Custom Lengths | 1cm to 100m | Available |
| Sterilization Compatibility | Ethylene Oxide (EO), Gamma Irradiation, E-beam | All Supported |
| Operating Temperature | -10°C to 60°C | - |
| Color | Clear (standard); Custom colors available | - |
Unmatched Advantages of Our Medical PVC Capillary Tubing
1. Industry-Leading Dimensional Precision
We utilize German-imported precision extrusion lines equipped with real-time laser dimensional monitoring systems that measure every millimeter of tubing during production. This ensures 100% compliance with our ±0.05mm OD and ±0.03mm ID tolerance specifications across every batch. The exceptional dimensional consistency eliminates common issues such as poor device fitting, fluid leakage, and micro-channel blockage, critical for the reliable operation of high-precision medical instruments.
2. Global Regulatory Compliance & Biocompatibility
All our medical PVC tubing is manufactured from phthalate-free, DEHP-free medical grade raw materials sourced from certified global suppliers. The tubing undergoes comprehensive biocompatibility testing in accordance with ISO 10993 and USP Class VI standards, including cytotoxicity, hemolysis, and skin irritation tests. We provide full documentation packages including material certificates, test reports, and compliance declarations to support your medical device registration processes in North America, Europe, Asia, and other global markets.
3. Optimized Ultra-Thin Wall Design
The 0.45mm ultra-thin wall construction achieves an ideal balance between flexibility and kink resistance. The tubing remains pliable at room temperature, resists cracking under repeated bending, and does not easily knot during assembly or use. The highly polished, smooth inner surface minimizes fluid resistance and eliminates dead volume, enabling precise, pulsation-free delivery of micro-volumes of liquids and gases with no residual fluid retention.
4. Comprehensive Customization Capabilities
As a specialized medical tubing manufacturer, we offer end-to-end customization services to meet your exact application requirements:
Precision cut-to-length tubing (±0.1mm length tolerance)
End treatments: flaring, tipping, bonding, and hole punching
Multi-lumen configurations and co-extruded tubing
Custom colors and radiopaque marker lines
Custom packaging and labeling options
Cleanroom packaging and pre-sterilized options
Primary Application Areas
This 1.0 x 0.1mm medical PVC thin-walled tubing is specifically designed for applications requiring ultra-precise microfluidic transfer:
Minimally invasive surgical instruments and endoscopic accessory tubing
Micro-injection pumps and precision intravenous drug delivery systems
In-vitro diagnostic (IVD) equipment and medical sensor fluid lines
Ophthalmic surgical instruments and intraocular drug delivery
Aesthetic medicine and cosmetic surgery precision devices
Laboratory animal research and pre-clinical testing
Microfluidic chips and analytical instrumentation
Quality Assurance & Global Supply Chain
All production takes place in our ISO 13485 certified Class 10000 cleanroom facilities, following strict GMP guidelines. Every production batch undergoes rigorous quality control testing including:
100% dimensional inspection
Pressure and burst strength testing
Leakage testing
Surface cleanliness verification
Bioburden testing
We maintain large inventory levels of standard specifications to ensure same-day shipping for urgent orders. Our global logistics network enables reliable delivery to over 50 countries worldwide. We support small-batch prototype orders (minimum 10 meters) as well as large-scale production runs for mass manufacturing.
Frequently Asked Questions (FAQs)
Q: What is the minimum order quantity for this 1.0x0.1mm PVC tubing?
A: The MOQ for standard clear tubing is 10 meters. For custom colors or special processing, the MOQ is 500 meters.
Q: Can this tubing be used with common pharmaceutical drugs?
A: Yes, our medical grade PVC tubing is compatible with most aqueous solutions and common pharmaceutical formulations. We can provide chemical compatibility charts upon request.
Q: Do you offer pre-sterilized tubing?
A: Yes, we can provide ethylene oxide or gamma irradiated pre-sterilized tubing in individual packaging.
Q: What is the lead time for custom orders?
A: Standard custom cut-to-length orders ship within 3-5 business days. Custom extrusion orders typically have a lead time of 2-3 weeks.
Q: Can you provide samples for testing?
A: Yes, we offer free 1-2 meter samples for evaluation purposes. Customers only need to cover the shipping cost.
Request a Quote Today
Contact our technical sales team today to discuss your specific requirements for 1.0mm OD x 0.1mm ID medical grade PVC thin-walled capillary tubing. We can provide detailed product datasheets, material certificates, and competitive pricing within 24 hours. Whether you need standard tubing or a fully customized solution, we are committed to delivering high-quality medical consumables that meet your most demanding specifications.
