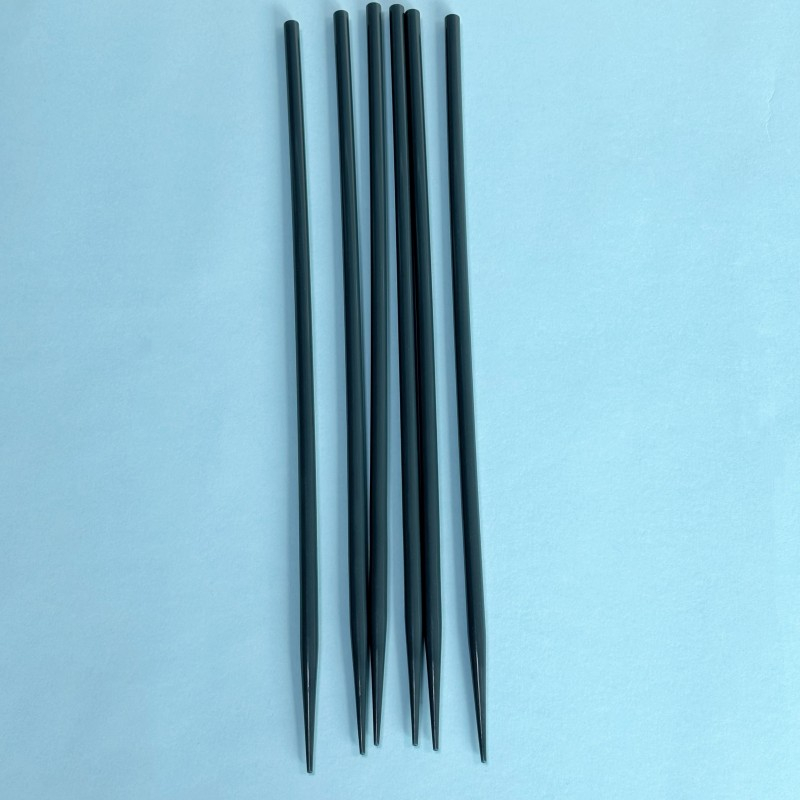

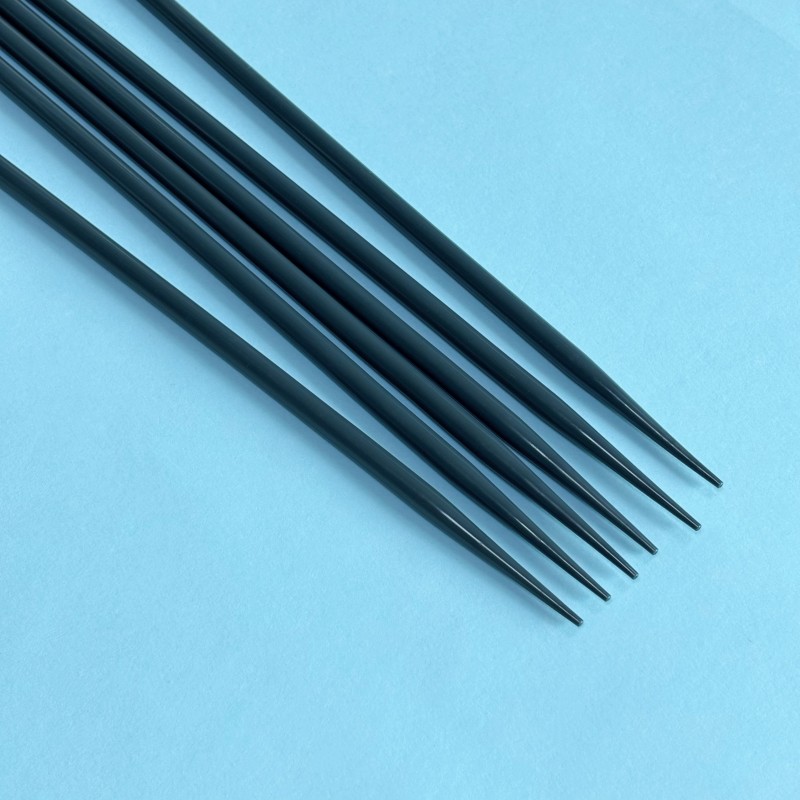

Disposable LDPE Dilation Sheath

Medical LDPE Tipped Catheter Product Details

Key Parameters

• Material: Medical-grade low-density polyethylene (LDPE)

• Tip Length: Precise 43mm taper design

• Appearance: Smooth black surface, burr-free and flash-free

• Specifications: This size is 18F (6.0*3.0*288+1.65*0.95*43), tube diameter and length can be customized upon request.

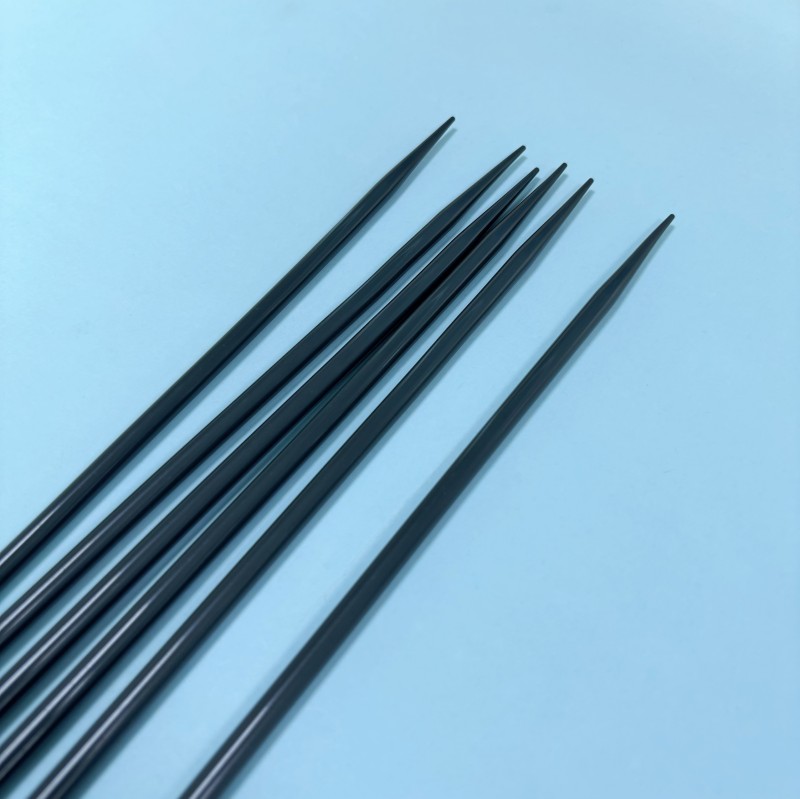

Dilator

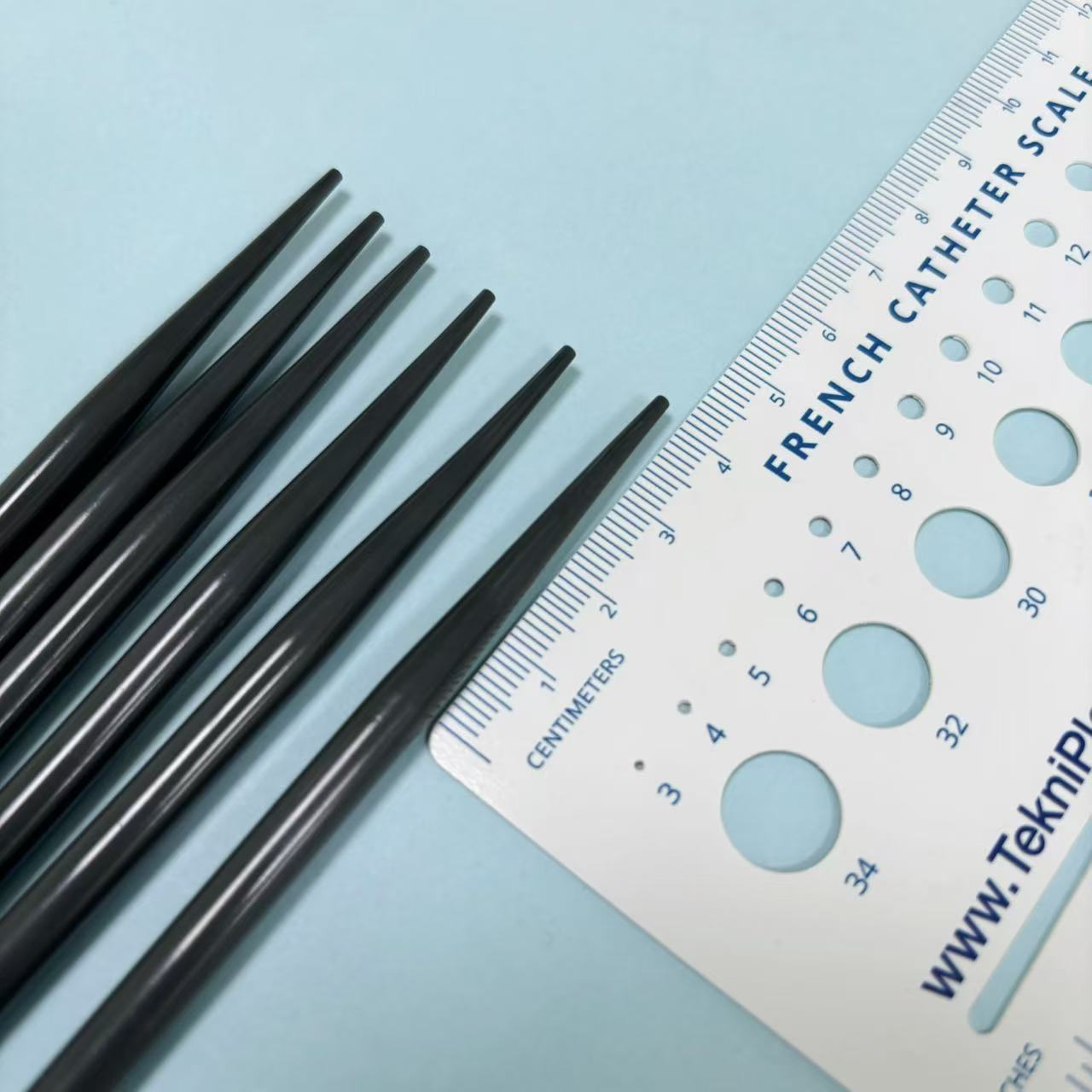

Sheath

Material Characteristics

Made from medical-grade LDPE raw materials, it combines excellent flexibility and impact resistance, can withstand routine medical sterilization procedures, and its biocompatibility meets ISO 10993 and YY/T 0294 standards. It poses no irritation or sensitization risk to human tissue, making it suitable for long-term clinical and research scenarios.

Advanced Design Advantages

The 43mm precise taper tip undergoes a special process, resulting in a high surface smoothness and low puncture resistance, effectively reducing tissue damage. The taper uniformity error is controlled within ±0.1mm, meeting the positioning requirements in interventional diagnosis and treatment, precise sampling, and other scenarios.

Medical Application Scenarios

• Guidance and delivery in interventional and minimally invasive surgeries

• Precise collection of biological samples such as body fluids and cells

• Drug administration and sampling in laboratory animals

• Precision injection assistance in the field of aesthetic medicine

Customization Services

• Supports full-dimensional customized production:

• Tube diameters available from 0.5mm to 5mm

• Tube length adjustable to meet clinical needs

• Features such as imaging rings and graduation markings can be added

• PE bag packaging available

Quality Assurance

Each batch of products undergoes 100% airtightness testing, taper accuracy calibration, and biosafety sampling. The production environment meets the standards of a Class 10,000 cleanroom, and a complete quality traceability report can be provided.
