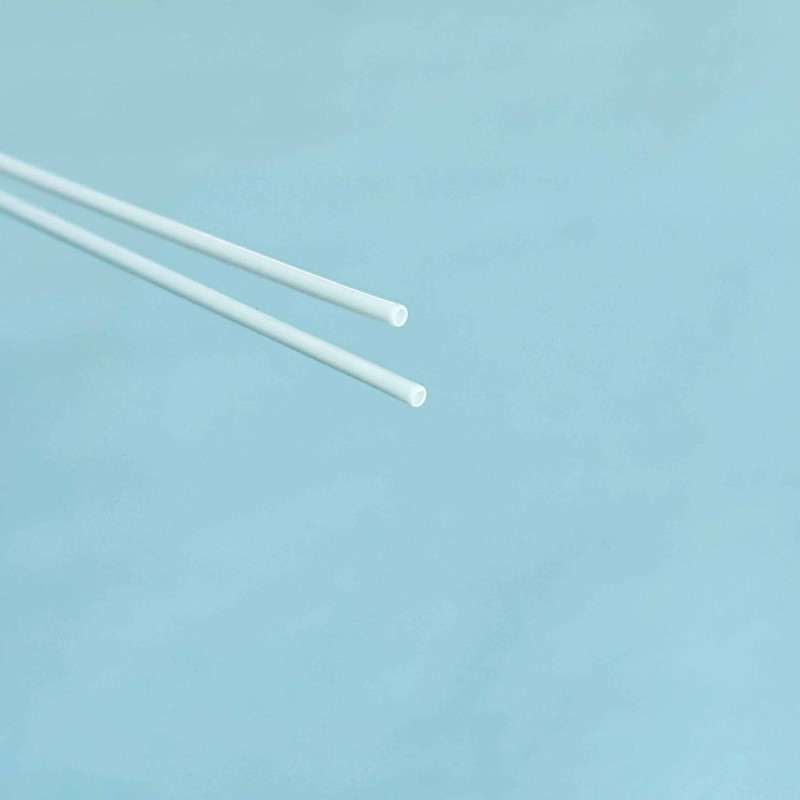

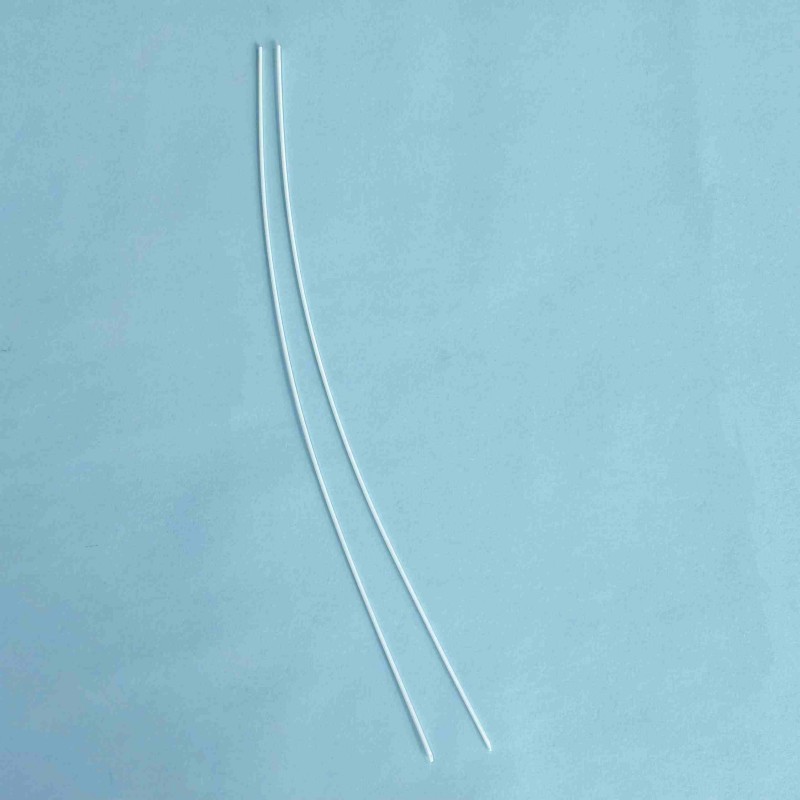

China OEM Medical grade PA Single Tubing with Bevel Cutting

I. Core Advantages of PA Anchor Limiting Tube (Oblique Cutting Process)

1. Intrinsic Advantages of Medical-Grade PA Material

• Excellent biocompatibility: Complies with medical safety standards such as ISO 10993, with no cytotoxicity or sensitization, safe for short-term/long-term indwelling in the body, and adaptable to various clinical scenarios.

• Outstanding mechanical properties: High strength, high bending resistance and toughness, fatigue and tensile resistance, capable of withstanding repeated pulling and squeezing during catheter operation, avoiding tube fracture or deformation, and ensuring structural stability.

• Chemical and sterilization resistance: Resistant to corrosion from body fluids, medicinal liquids and digestive juices, and does not react with common drugs; compatible with sterilization methods such as ethylene oxide (EO) and gamma rays, with no significant performance attenuation after sterilization.

• Precision moldability: PA is suitable for high-precision extrusion molding, achieving inner/outer diameter tolerances at the ±0.01 mm level, with excellent tube roundness and wall thickness uniformity, meeting the precision assembly requirements of medical devices.

2. Structural Advantages of Oblique Cutting Process

• Minimally invasive insertability: The oblique-cut tube mouth has a smooth, sharp edge, which greatly reduces scratches to mucous membranes and vascular endothelium when inserted into blood vessels, cavities or assembled with guidewires/instruments, lowering the risk of postoperative inflammation and bleeding.

• Precise limiting and anchoring: The oblique-cut surface can precisely engage with anchor structures (metal snap rings, polymer anchor wings) to realize positional locking of the catheter in the body, effectively preventing catheter displacement and prolapse, and ensuring the stability of the treatment position.

• Smooth passability: The oblique-cut opening avoids the "jamming effect" of right-angle tube mouths, resulting in lower resistance and smoother delivery of medicinal liquids, guidewires or interventional devices, improving operational efficiency.

• Efficient assemblability: The oblique-cut structure is easier to align and nest when assembling with anchors, outer catheters, visualization rings and other components, reducing assembly errors and improving mass production efficiency.

3. Functional Advantages of Anchor Limiting Tube

• Precise limiting function: As the "positioning skeleton" of the catheter, it cooperates with the anchor to realize axial/radial limiting, avoiding catheter displacement during physiological movement (respiration, peristalsis) or operation, and ensuring the accuracy of drug infusion, drainage and interventional therapy.

• Lightweight and compliance: The single-tube structure combined with moderate-density PA material makes the tube lightweight and flexible, able to fit the physiological shape of cavities/blood vessels, reducing foreign body sensation and tissue compression on patients.




•

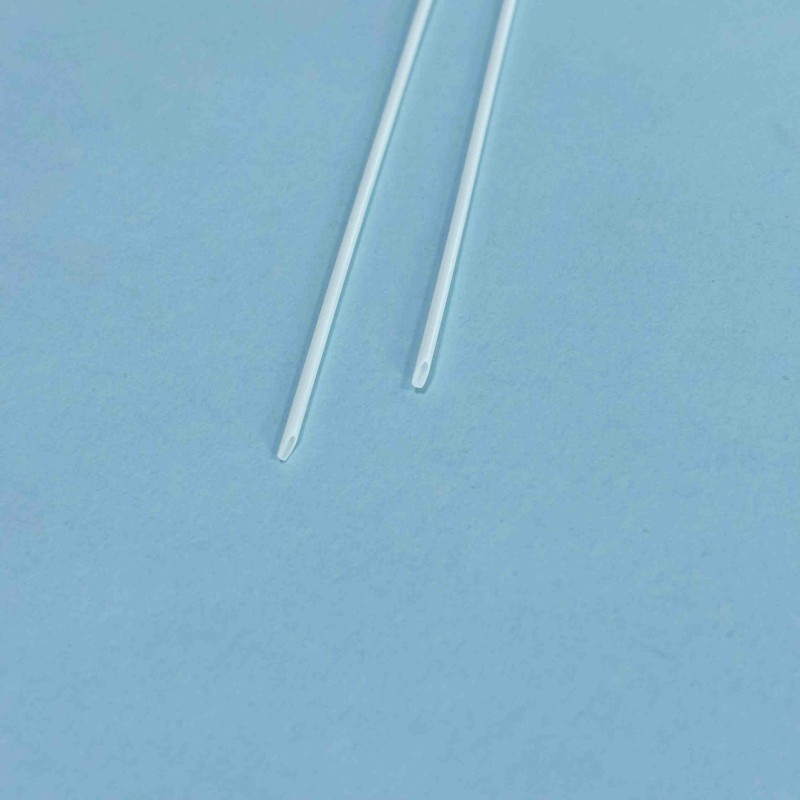

  PA Medical Tubing

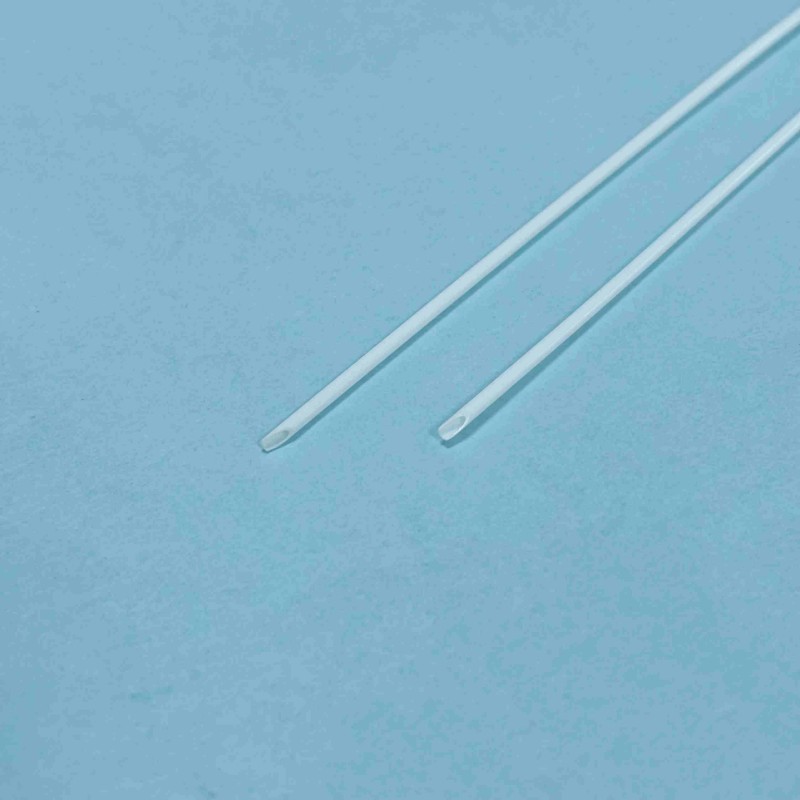

  PA Catheter

II. Typical Application Scenarios in Finished Medical Catheters

1. Vascular Intervention Catheters

• Central Venous Catheter (CVC)/PICC: Serves as a fixed limiting component, cooperating with subcutaneous anchors to fix the catheter in the central vein, preventing displacement and prolapse, and ensuring the safety of long-term infusion and chemotherapy; the oblique-cut tube mouth reduces vascular endothelial injury and lowers the risk of thrombosis.

• Angiography/guiding catheters: In coronary and peripheral vascular interventions, it helps fix the catheter in the target vascular branch, providing a stable channel for balloon and stent delivery; the oblique-cut design improves passability in tortuous vascular segments and reduces vascular wall irritation.

• Hemodialysis catheters: Fixes the catheter in the venous cavity, preventing displacement during dialysis and ensuring stable blood flow; PA material is resistant to dialysate corrosion, suitable for long-term dialysis needs.

2. Non-Vascular Cavity Intervention Catheters (Focus: ERCP Scenarios)

• ERCP biliary drainage catheter/ENBD: After ERCP surgery, fixes the drainage catheter in the biliary tract/duodenum to prevent prolapse and ensure unobstructed bile drainage; the oblique-cut tube mouth inserts more smoothly into the duodenal papilla, reducing trauma to the biliary and pancreatic duct openings.

• Ureteral catheters/stents: Cooperates with the ureteral stent anchoring structure to fix it between the renal pelvis and bladder, preventing displacement and ensuring urine drainage and stone removal; PA material is resistant to urine corrosion, adaptable to the urinary system environment.

• Gastrointestinal decompression/nasal feeding catheters: Fixes the catheter in the stomach/small intestine, preventing prolapse due to vomiting or peristalsis; the oblique-cut tube mouth reduces irritation to the pharyngeal and esophageal mucosa, improving patient tolerance.

3. Specialized Treatment Catheters

• Epidural/nerve block anesthesia catheters: Fixes the catheter in the epidural space or around nerves, ensuring precise delivery of anesthetic drugs and avoiding displacement-induced failure; the oblique-cut tube mouth reduces injury to spinal nerves and soft tissues, enhancing postoperative comfort.

• Thoracic/abdominal drainage catheters: Fixes the drainage catheter in the body cavity, preventing displacement during position changes and ensuring the drainage effect of pleural effusion, ascites and pus; PA material is resistant to body fluid corrosion, suitable for infectious drainage scenarios.

• Tumor interventional embolization catheters: In embolization treatment of liver cancer, uterine fibroids, etc., fixes the catheter in the target feeding artery, ensuring precise delivery of embolic agents to the lesion and avoiding embolization of normal tissues.

III. Summary
