Views: 0 Author: Bova Publish Time: 2026-08-25 Origin: Site

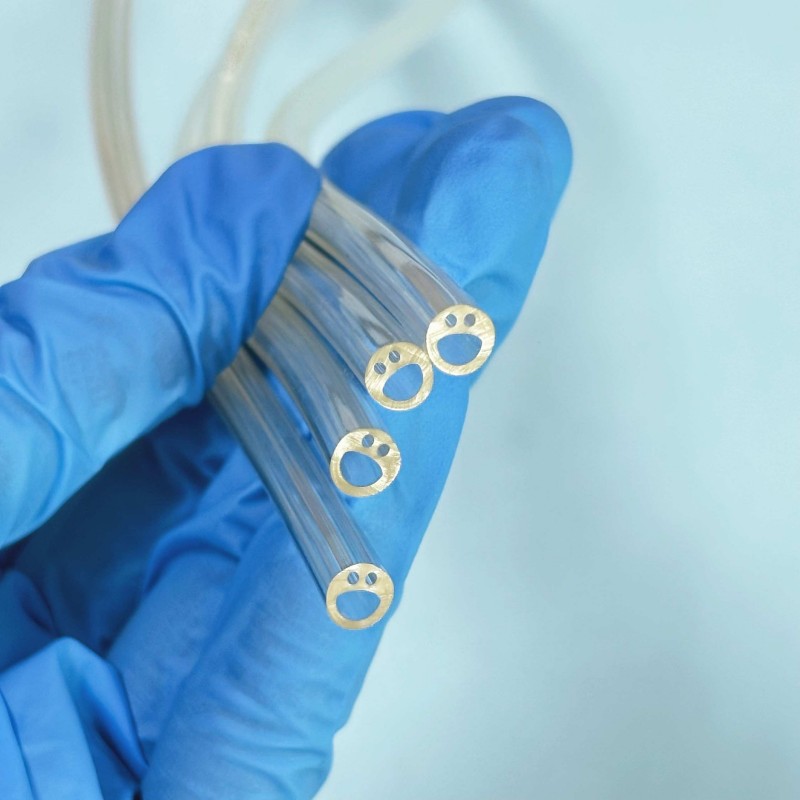

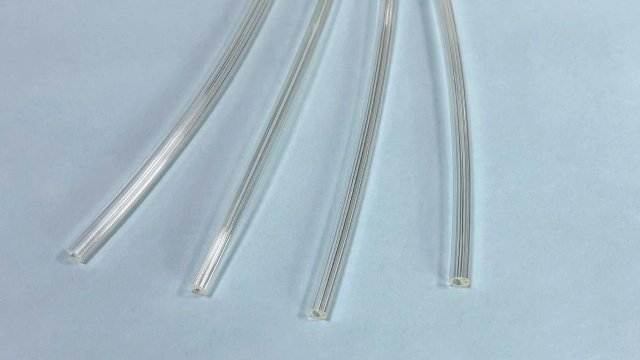

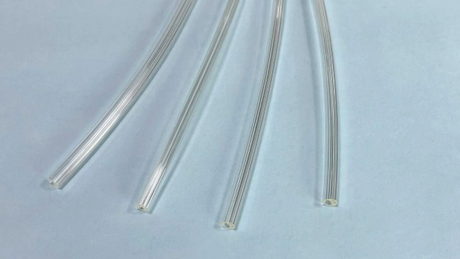

TPU medical multi-lumen tubing is a precision extruded tube made from thermoplastic polyurethane (TPU) with two or more independent lumens. Each lumen can be designed for separate fluid, gas, guidewire or functional pathways, making multi-lumen tubing suitable for compact medical devices and minimally invasive applications where multiple channels must be integrated into a limited space.
For medical device manufacturers and procurement teams, selecting TPU multi-lumen tubing is not only about material selection. Key factors such as lumen configuration, outer diameter, wall thickness, flexibility, dimensional tolerance, bonding compatibility and extrusion consistency can directly affect the performance and assembly of the final device.
TPU, or thermoplastic polyurethane, is a flexible engineering polymer known for its combination of elasticity, abrasion resistance, mechanical strength and chemical resistance. Through precision extrusion, TPU can be processed into multi-lumen tubing with different lumen numbers, diameters and cross-sectional arrangements.
Unlike conventional single-lumen tubing, TPU multi-lumen tubing integrates several independent channels into one compact tube. Depending on the application, one lumen may be used for fluid delivery, another for inflation, and another for guidewire or auxiliary functions.
This integrated structure can reduce the number of separate tubes and help medical device designers save internal space. For compact catheter systems and other medical assemblies, a properly designed multi-lumen tube can also simplify routing and component integration.
The primary advantage is the ability to integrate multiple independent channels into a single extrusion. Different lumen sizes and configurations can be designed according to the functional requirements of the final medical device.
Common configurations include double-lumen, triple-lumen and more complex multi-lumen structures.
TPU offers good flexibility and elastic recovery, making it suitable for tubing that needs to bend or follow curved pathways. The appropriate TPU grade and hardness should be selected according to the required flexibility, kink resistance and mechanical performance.
Multi-lumen extrusion combines several channels into one component instead of using multiple individual tubes. This can help reduce assembly complexity and improve space utilization inside compact medical devices.
TPU generally provides good resistance to abrasion and many commonly encountered chemicals. These characteristics can be valuable in medical tubing applications where the tube may experience repeated bending, contact or fluid exposure.
Medical TPU multi-lumen tubing is not limited to standard round configurations. Manufacturers can develop customized lumen arrangements based on drawings and functional requirements, including different lumen diameters, wall thicknesses and cross-sectional layouts.
TPU multi-lumen tubing can be used as a component in a range of medical devices and disposable medical assemblies.
In interventional catheter applications, multiple channels may be required for fluid delivery, inflation, guidewire passage or other auxiliary functions. TPU's flexibility can make it suitable for catheter components where controlled bending is required.
TPU multi-lumen tubes can also be used as connection components in medical equipment where multiple independent fluid or gas pathways need to be integrated into a compact assembly.
Depending on the selected material grade and device design, different lumens can be assigned to separate fluid pathways. This structure can help simplify tubing arrangements in medical fluid-management systems.
Customized TPU tubing can also be incorporated into single-use medical assemblies. The final application should be evaluated according to material requirements, processing conditions, sterilization method and applicable regulatory requirements.
Important: TPU multi-lumen extrusion tubing is generally a component or raw material rather than a finished medical device. Biocompatibility, sterilization compatibility and regulatory compliance should be evaluated according to the intended final-device application and selected material grade.
For procurement engineers, the most important specifications should be confirmed before requesting a quotation.
1. Material: Specify the required TPU grade, hardness and relevant material requirements.
2. Outer diameter: Define the finished tube OD and allowable dimensional tolerance.
3. Lumen dimensions: Provide the number of lumens and the required inner diameter of each lumen.
4. Lumen arrangement: Cross-sectional drawings are highly recommended for complex multi-lumen structures.
5. Wall thickness: Uneven wall thickness can affect flexibility, pressure resistance and dimensional stability.
6. Mechanical requirements: Clarify flexibility, tensile strength, kink resistance and other application-specific requirements.
7. Secondary processing: Confirm whether cutting, punching, forming, printing, bonding or assembly is required.
8. Production consistency: For medical device manufacturing, stable lumen dimensions and extrusion repeatability are particularly important during mass production.
A professional medical extrusion manufacturer should be able to develop the tubing according to the customer's technical drawing rather than relying only on standard catalog sizes.
A typical customization process includes:
Technical requirement confirmation – Review the drawing, material, lumen number, OD, ID, wall thickness and application requirements.
Cross-section and tooling development – Design and optimize the multi-lumen extrusion die according to the required geometry.
Prototype extrusion – Produce samples for dimensional and functional evaluation.
Inspection and adjustment – Check lumen dimensions, concentricity, wall thickness and overall geometry.
Production validation – Confirm extrusion stability before mass production.
Secondary processing – Provide cutting, forming, punching, printing, bonding or assembly when required.
For complex multi-lumen structures, the extrusion die design and process control are especially important. As the number of lumens increases, maintaining stable lumen dimensions and consistent wall thickness becomes more challenging.
For medical device manufacturers looking for a custom TPU multi-lumen tubing supplier, Kunshan Bova Plastic Co., Ltd. (Kunshan Bova) provides precision medical extrusion and customized tubing solutions.
Bova can customize TPU multi-lumen tubing according to customer drawings and specifications, including lumen number, lumen diameter, outer diameter, wall thickness, cross-sectional arrangement and material requirements. The company also supports customization of other medical extrusion materials such as Pebax, PE, PEEK and medical-grade PVC, depending on the application.
In addition to tubing extrusion, Bova can support secondary processing and assembly requirements such as cutting, forming, punching, printing, catheter bonding and component assembly.
For medical device OEMs, catheter manufacturers and medical procurement teams, providing a detailed technical drawing and application requirements at the quotation stage can help the manufacturer evaluate tooling, material selection, tolerances and production feasibility more efficiently.
TPU medical multi-lumen tubing combines the flexibility of TPU with the functional advantages of multi-channel extrusion. Its compact structure, customizable lumen configuration and suitability for various medical tubing applications make it an important option for catheter components, medical connection tubing and other medical device assemblies.
When selecting a supplier, buyers should look beyond the material itself and evaluate extrusion precision, lumen dimensional stability, customization capability, tooling experience, secondary processing and production consistency.
For customized TPU multi-lumen tubing and other precision medical extrusion components, Kunshan Bova can provide customized solutions based on technical drawings and application requirements.
