Pebax Multi-Lumen Catheter Tubing: Material Properties, Design, Applications, and Custom Manufacturing Guide

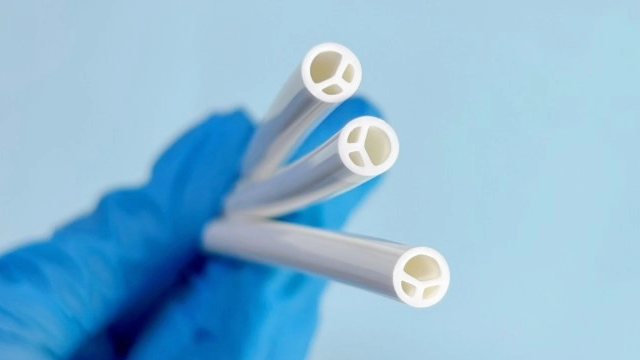

What Is Pebax Multi-Lumen Catheter Tubing?

Pebax multi-lumen catheter tubing is an advanced medical-grade tubing solution manufactured from Pebax® (Polyether Block Amide), a high-performance thermoplastic elastomer widely used in minimally invasive medical devices.

Pebax combines the advantages of polymers with different hardness levels, providing an ideal balance between flexibility, pushability, torque control, and kink resistance.

In modern interventional procedures, catheter systems often require multiple independent channels to simultaneously deliver:

• Guidewires

• Contrast media

• Therapeutic drugs

• Inflation fluids

• Other medical instruments

Therefore, Pebax multi-lumen tubing has become a critical component in advanced catheter designs, including balloon catheters, microcatheters, vascular access devices, and minimally invasive delivery systems.

Why Is Pebax Widely Used in Medical Catheters?

1. Excellent Balance Between Flexibility and Mechanical Strength

One of the biggest advantages of Pebax catheter tubing is its unique mechanical balance.

The proximal section of a catheter requires sufficient stiffness to provide:

• Strong pushability

• Accurate device delivery

• Better torque transmission

The distal section requires softness and flexibility to:

• Navigate through tortuous blood vessels

• Reduce vessel wall irritation

• Improve patient safety

Pebax materials can be customized with different hardness grades, allowing manufacturers to create catheter shafts with hard proximal sections and soft distal sections.

2. Outstanding Kink Resistance and Torque Performance

During minimally invasive procedures, catheters often pass through complex anatomical pathways.

Pebax provides:

• High kink resistance

• Stable dimensional performance

• Excellent rotational control

• Smooth navigation capability

These characteristics are essential for cardiovascular and neurovascular intervention devices.

3. Excellent Biocompatibility and Chemical Resistance

Medical-grade Pebax offers reliable performance when exposed to:

• Blood

• Contrast agents

• Saline solutions

• Pharmaceutical fluids

Its chemical stability and biocompatibility make it suitable for long-term contact medical devices.

Pebax Multi-Lumen Catheter Design Considerations

1. Multi-Lumen Channel Layout Design

The internal channel structure directly affects catheter performance.

Because catheter space is limited, manufacturers must optimize:

• Outer diameter

• Channel arrangement

• Wall thickness

• Flow efficiency

• Mechanical strength

Common Pebax multi-lumen designs include:

Central Guidewire Lumen + Peripheral Fluid Lumens

A large central lumen is designed for guidewire passage, while smaller surrounding lumens are used for:

• Contrast injection

• Drug delivery

• Balloon inflation

Multiple Equal Circular Lumens

Several independent circular channels are evenly distributed within the tube structure.

Advantages:

• Balanced mechanical strength

• Stable pressure performance

• Multiple fluid delivery functions

Customized Crescent or Irregular Lumens

For highly integrated catheter systems, customized lumen geometries can maximize internal space utilization.

These designs are often used in:

• Complex intervention devices

• Advanced delivery systems

• Specialized surgical catheters

Pebax Multi-Lumen Catheter Tube Manufacturing Process

1. Precision Extrusion Technology

Pebax multi-lumen tubing is mainly manufactured through precision extrusion.

The process includes:

1. Medical-grade Pebax material preparation

2. Controlled heating and melting

3. Precision multi-lumen die extrusion

4. Cooling and dimensional calibration

5. Online inspection and quality verification

Because Pebax processing parameters are sensitive, extrusion temperature, pressure, and cooling conditions must be precisely controlled.

Improper processing may cause:

• Lumen deformation

• Layer separation

• Uneven wall thickness

• Dimensional instability

2. Advanced Quality Control

High-performance catheter tubing requires strict quality management.

Typical inspection includes:

Dimensional Testing

• Outer diameter

• Inner lumen size

• Wall thickness

• Concentricity

• Roundness

Mechanical Testing

• Tensile strength

• Flexibility

• Kink resistance

• Burst pressure

Functional Testing

• Flow performance

• Pressure resistance

• Lumen integrity

These controls ensure reliable performance during minimally invasive procedures.

Main Applications of Pebax Multi-Lumen Catheter Tubing

1. Cardiovascular Intervention Devices

Pebax multi-lumen tubes are widely used in:

• Balloon catheter systems

• Coronary intervention catheters

• Peripheral vascular catheters

• Guide catheter assemblies

The multi-channel structure enables simultaneous delivery of different fluids and medical components.

2. Neurovascular Microcatheters

Neurovascular procedures require extremely small and flexible catheter systems.

Pebax provides:

• Excellent flexibility

• Precise navigation

• Reduced risk of vessel damage

It is commonly used in:

• Stroke intervention devices

• Embolization catheter systems

• Neurovascular delivery devices

3. ERCP and Specialized Medical Catheters

Pebax multi-lumen tubing is also used in gastrointestinal and specialty intervention devices.

Applications include:

• ERCP catheter systems

• Multi-function drainage catheters

• Specialized access sheaths

4. Urological and Surgical Delivery Systems

Multi-lumen Pebax tubes can integrate multiple functions into a single catheter, helping reduce device complexity and improve procedural efficiency.

Advantages of Customized Pebax Multi-Lumen Catheter Tubing

Medical device manufacturers often require customized catheter structures according to specific applications.

Customization options include:

• Two-lumen to nine-lumen structures

• Thin-wall designs

• Custom lumen geometry

• Different Pebax hardness combinations

• Radiopaque additive integration

• Special dimensional tolerances

For example, adding barium sulfate (BaSO₄) enables X-ray visibility, improving catheter positioning during clinical procedures.

Custom Pebax Multi-Lumen Catheter Manufacturer – Kunshan Bova Plastic Co., Ltd.

For medical device companies developing advanced catheter systems, choosing an experienced extrusion manufacturer is essential.

(Kunshan Bova Plastic Co., Ltd.) specializes in the precision extrusion manufacturing of customized medical tubing solutions.

Bova provides professional solutions including:

• Pebax multi-lumen catheter tubing

• Thin-wall catheter tubes

• Microcatheter tubing

• TPU medical tubes

• PEEK medical tubes

• Complex custom extrusion tubing

With advanced extrusion technology and strict quality control systems, Bova supports customers with:

• Multi-lumen structural design

• Material selection recommendations

• Custom hardness gradient solutions

• Radiopaque catheter tubing production

• Precision dimensional control

From prototype development to mass production, Kunshan Bova helps medical device manufacturers develop reliable catheter components for cardiovascular, neurovascular, endoscopic, and minimally invasive applications.

Conclusion

Pebax multi-lumen catheter tubing plays an essential role in modern minimally invasive medical devices due to its unique combination of flexibility, strength, kink resistance, biocompatibility, and design flexibility.

Through advanced multi-lumen extrusion technology and customized structural design, Pebax tubing enables next-generation catheter systems with improved performance and clinical reliability.

For medical device manufacturers seeking customized Pebax catheter solutions, Kunshan Bova Plastic Co., Ltd. provides professional medical extrusion capabilities and reliable tubing development support.
