PEEK Medical Octagonal Tube: Properties, Manufacturing Process, Applications, and Customization Guide

What Is a PEEK Medical Octagonal Tube?

PEEK medical octagonal tube is a high-performance medical-grade tubing product manufactured from PEEK (Polyether Ether Ketone), a special engineering polymer known for its excellent mechanical strength, chemical resistance, thermal stability, and biocompatibility.

Unlike conventional round medical tubes, the octagonal tube design features a unique polygonal cross-section, providing advantages in specific medical device applications where structural stability, space optimization, precise positioning, and customized assembly requirements are important.

PEEK medical octagonal tubes are commonly used in advanced medical equipment, analytical instruments, minimally invasive devices, and other high-performance medical applications requiring reliable tubing performance.

Key Advantages of PEEK Medical Octagonal Tubes

1. Excellent Chemical Resistance and Biocompatibility

One of the most important advantages of PEEK medical octagonal tubes is their outstanding chemical resistance.

PEEK materials can withstand exposure to many chemicals, solvents, and pharmaceutical substances without corrosion or degradation. This makes them suitable for applications involving:

• Medical fluid transfer systems

• Chemical analysis equipment

• Laboratory instruments

• Drug delivery devices

In addition, medical-grade PEEK has excellent biocompatibility, allowing it to safely contact human tissues and biological fluids without causing significant adverse reactions.

This property makes PEEK an ideal material for medical devices requiring long-term reliability and safety.

2. High Purity for Medical and Analytical Applications

PEEK medical octagonal tubes feature extremely high material purity and low levels of extractable substances.

Compared with traditional metal tubes, PEEK tubes do not easily introduce metallic ions or contaminants into transported fluids.

This makes them especially suitable for:

• Blood analysis equipment

• Diagnostic instruments

• Precision liquid handling systems

• Medical laboratory equipment

High-purity PEEK tubing helps maintain accurate test results and reduces the risk of contamination during medical analysis.

3. High Mechanical Strength and Durability

PEEK is recognized as one of the strongest engineering plastics available.

PEEK medical octagonal tubes offer:

• High tensile strength

• Excellent impact resistance

• Fatigue resistance

• Dimensional stability

Even under repeated mechanical stress, the tubing maintains its structural integrity.

This makes PEEK octagonal tubes suitable for medical devices that require long service life and stable performance.

4. Outstanding Temperature Resistance

PEEK medical tubing provides excellent thermal performance.

Typical temperature resistance:

• Continuous operating temperature: approximately 260°C

• Short-term service temperature: up to 300°C

This allows PEEK octagonal tubes to withstand demanding environments such as:

• High-temperature sterilization processes

• Autoclave applications

• Medical equipment requiring thermal stability

Compared with many conventional plastic tubes, PEEK maintains its mechanical properties at elevated temperatures.

5. Low Friction and Excellent Wear Resistance

PEEK has natural self-lubricating properties and a low coefficient of friction.

The advantages include:

• Reduced friction during operation

• Lower energy consumption

• Reduced component wear

• Longer service life

In precision medical devices where smooth movement and accurate control are required, PEEK octagonal tubes provide reliable performance.

6. Low Moisture Absorption and Hydrolysis Resistance

PEEK medical octagonal tubes have very low water absorption and excellent hydrolysis resistance.

They can maintain stable performance in:

• Humid environments

• Water exposure

• Steam sterilization conditions

This characteristic is especially important for reusable medical equipment that requires repeated cleaning and sterilization.

How Are PEEK Medical Octagonal Tubes Manufactured?

The manufacturing process of PEEK medical octagonal tubes requires advanced extrusion technology and strict quality control.

1. Medical-grade PEEK Material Selection

The production begins with selecting high-quality PEEK resin that meets medical application requirements.

Important material factors include:

• Material purity

• Mechanical performance

• Thermal stability

• Biocompatibility

2. Precision PEEK Extrusion Process

PEEK octagonal tubes are mainly produced through precision extrusion.

The manufacturing process includes:

1. PEEK resin drying and preparation

2. Controlled heating and melting

3. Extrusion through a customized octagonal die

4. Cooling and dimensional calibration

5. Surface inspection and quality testing

Because PEEK has a high melting temperature and difficult processing characteristics, precise control of:

• Extrusion temperature

• Pressure

• Speed

• Cooling rate

is required to achieve stable dimensions and excellent surface quality.

3. Quality Inspection

Medical-grade PEEK octagonal tubes require strict inspection before delivery.

Typical inspection items include:

• Outer diameter accuracy

• Inner diameter tolerance

• Wall thickness consistency

• Surface finish

• Mechanical properties

• Chemical resistance

These quality controls ensure reliable performance in demanding medical applications.

Applications of PEEK Medical Octagonal Tubes

1. Medical Device Manufacturing

PEEK octagonal tubes are widely used in advanced medical devices, including:

• Liquid analysis instruments

• Diagnostic equipment

• Surgical devices

• Precision fluid systems

Their chemical resistance, high purity, and dimensional stability make them suitable for accurate fluid transportation.

2. Medical Implant and Surgical Applications

Due to excellent biocompatibility, PEEK materials are widely used in implant-related medical applications.

PEEK medical components are valued for:

• Compatibility with human tissue

• Long-term stability

• Lightweight structure

• Mechanical strength

3. Medical Testing and Laboratory Equipment

PEEK octagonal tubes are commonly applied in laboratory and diagnostic systems.

Examples include:

• Blood analysis equipment

• Chemical testing systems

• Precision sampling devices

Their low contamination risk and chemical resistance help improve testing accuracy.

Why Choose Customized PEEK Medical Octagonal Tubes?

Different medical devices have unique structural and performance requirements.

Customized PEEK octagonal tubes can be manufactured according to:

• Tube dimensions

• Wall thickness

• Inner channel design

• Length requirements

• Surface treatment requirements

• Special application environments

Custom extrusion enables manufacturers to develop tubing solutions optimized for specific medical devices.

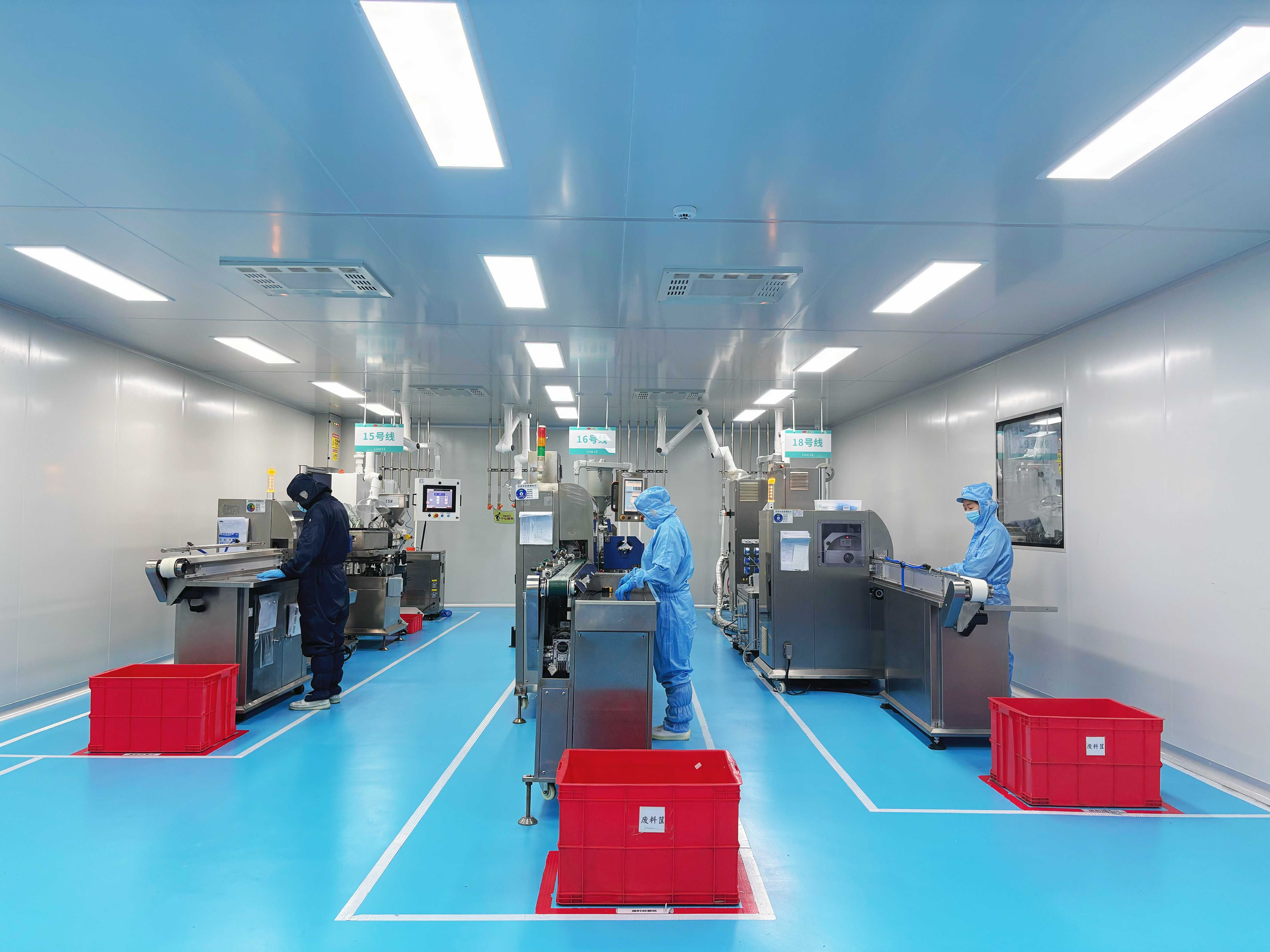

Custom PEEK Medical Tube Manufacturing by Bova

Specializes in the development and precision extrusion manufacturing of high-performance medical tubing solutions.

With advanced extrusion technology and professional material processing experience, Bova provides customized medical tube solutions including:

• PEEK medical tubes

• PEEK octagonal tubes

• Multi-lumen medical tubes

• TPU medical tubes

• Customized polymer extrusion tubing

The company supports customers with:

• Custom dimensions

• Complex tube structures

• Medical-grade material selection

• Precision extrusion production

• Quality-controlled manufacturing

For medical device manufacturers seeking reliable PEEK medical octagonal tube suppliers, customized extrusion solutions can help improve device performance, reliability, and production efficiency.

Conclusion: PEEK Medical Octagonal Tube Provides Reliable Solutions for Advanced Medical Devices

PEEK medical octagonal tubes combine high strength, chemical resistance, thermal stability, biocompatibility, low friction, and high dimensional accuracy, making them an excellent choice for modern medical equipment.

With increasing demand for lightweight, durable, and high-performance medical components, customized PEEK tubing solutions will continue to play an important role in next-generation medical device development.
