Views: 0 Author: Bova Publish Time: 2026-08-28 Origin: Site
Primary Keywords: medical multi-row tubing, medical multi-row tubing material, medical tubing material selection, PVC vs TPU medical tubing, medical multi-lumen tubing, custom medical tubing
Choosing the right material is one of the most important decisions when developing or sourcing medical multi-row tubing. Material selection affects flexibility, mechanical strength, transparency, chemical resistance, sterilization compatibility, service life, manufacturing cost, and overall product performance.
For medical device manufacturers and procurement teams, the three commonly considered materials are PVC (polyvinyl chloride), TPU (thermoplastic polyurethane), and silicone. Each material has different advantages, and the best choice depends on the intended application rather than simply the material price.
This guide compares PVC, TPU, and silicone for medical multi-row tubing and explains how to select the right material for your medical device project.
Medical multi-row tubing is a specialized tubing structure in which multiple individual channels or tubes are arranged in parallel or according to a customized cross-sectional design.
Compared with conventional single-lumen tubing, multi-row tubing can integrate several fluid, gas, drainage, or functional channels into a compact structure. The number of rows, tube diameter, wall thickness, spacing, and overall cross-sectional geometry can be customized according to the medical device design.
For this reason, material selection and extrusion capability are both important when sourcing custom medical multi-row tubing.

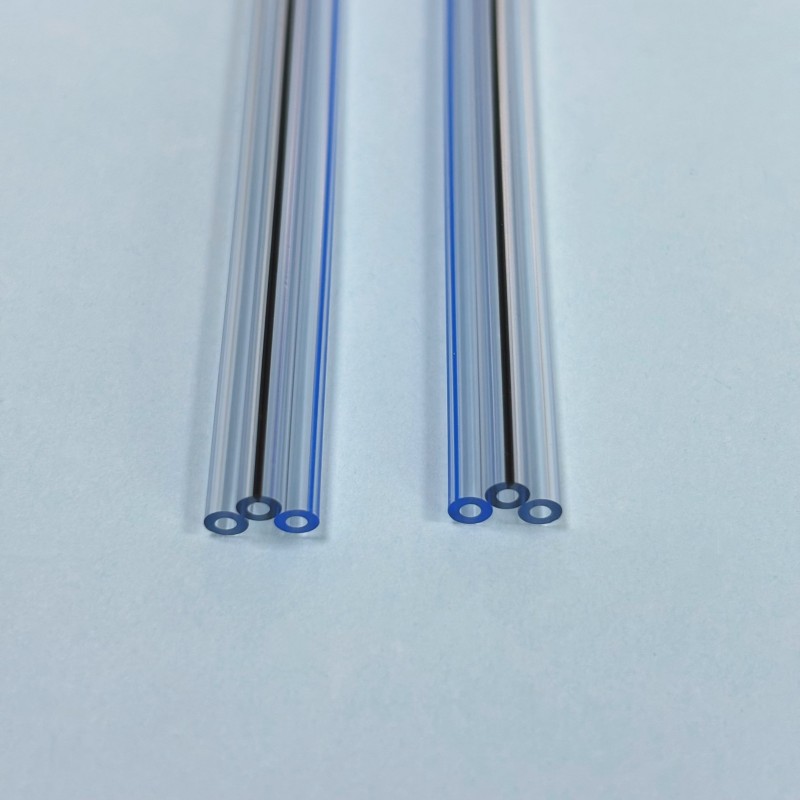

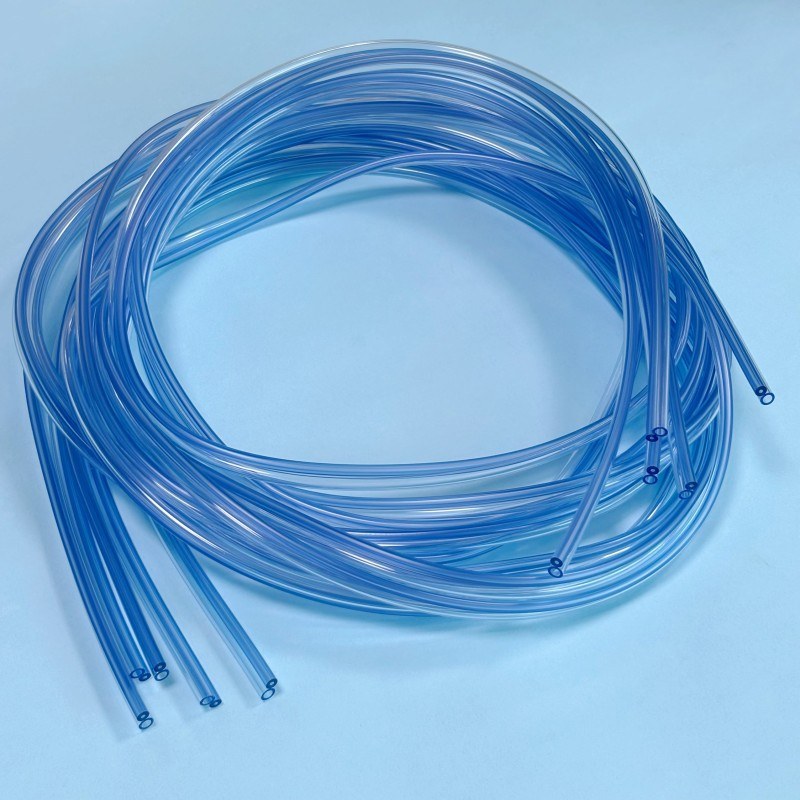

PVC is one of the most widely used polymers for medical tubing because of its mature processing technology, good transparency, and relatively low cost.
Cost-effective for disposable medical products
Good transparency for visual monitoring of fluids
Mature extrusion technology
Available in different formulations and hardness levels
Suitable for high-volume production
PVC is relatively rigid in its unplasticized form. Flexible medical PVC normally relies on a plasticizer system to achieve the required softness and flexibility.
Therefore, medical device manufacturers should not evaluate PVC only by the material name. The specific medical-grade formulation, plasticizer system, biocompatibility requirements, and intended application should all be considered.
PVC may also become less flexible at low temperatures compared with more elastic materials such as TPU.
PVC medical tubing can be considered for:
Disposable medical tubing
Short-term drainage applications
Fluid transfer tubing
Certain extracorporeal circuits
Other cost-sensitive medical tubing applications
Best suited for: applications where cost efficiency, transparency, and established processing are important.
TPU, or thermoplastic polyurethane, is increasingly used for high-performance medical tubing because it combines flexibility, elasticity, toughness, and abrasion resistance.
Compared with conventional flexible PVC, TPU can provide a useful balance between softness and mechanical strength.
Excellent flexibility and elasticity
Good kink and bend resistance
High abrasion resistance
Good mechanical strength
Available in different hardness grades
Suitable for precision thermoplastic extrusion
Can be used for complex tubing structures
TPU is particularly attractive when a medical multi-row tube needs to withstand repeated bending, movement, or mechanical stress.
However, TPU grades are not identical. Different formulations can have significantly different properties, including hardness, hydrolysis resistance, chemical resistance, and sterilization compatibility.
For this reason, procurement teams should specify the exact TPU grade and required sterilization method during the development stage.
TPU medical tubing may be considered for:
Blood processing and related tubing components
Interventional medical device components
Flexible catheter components
Medium- to long-term medical tubing applications
Applications requiring higher flexibility and mechanical performance
Best suited for: medical devices requiring a balance of flexibility, strength, abrasion resistance, and precision extrusion.
Medical-grade silicone is widely recognized for its excellent flexibility, temperature resistance, and suitability for many long-term medical applications.
Silicone has a different material and manufacturing profile from PVC and TPU. It is an elastomer and is typically processed through silicone extrusion followed by curing or vulcanization.
Excellent flexibility
Good temperature resistance
Good chemical stability
Suitable for many long-term medical contact applications
Maintains flexibility over a wide temperature range
The main considerations when using silicone include higher material and manufacturing costs, different processing requirements, and mechanical properties that may not be ideal for every high-strength tubing application.
For complex multi-row structures, manufacturers also need to evaluate dimensional stability, inter-row bonding, tear resistance, and the feasibility of the required cross-sectional geometry.
Silicone tubing is commonly considered for:
Long-term drainage tubing
Long-term indwelling tubing
Implantable or long-term contact components
Medical applications requiring high flexibility
Best suited for: applications where flexibility, temperature resistance, and long-term medical contact performance are key priorities.
Property | PVC | TPU | Silicone |
|---|---|---|---|
Relative Cost | Low | Medium | High |
Flexibility | Moderate | High | Excellent |
Elasticity | Moderate | Excellent | Excellent |
Abrasion Resistance | Moderate | Excellent | Good |
Transparency | Good | Grade-dependent | Usually translucent |
Mechanical Strength | Good | High | Moderate |
Precision Thermoplastic Extrusion | Excellent | Excellent | Different process |
Long-Term Applications | Application-dependent | Application-dependent | Common |
Main Advantage | Cost efficiency | Performance balance | Flexibility and long-term use |
Important: These are general material characteristics. Actual performance depends on the specific medical-grade formulation, hardness, tubing dimensions, processing conditions, sterilization method, and final device design.
For medical device procurement teams, material selection should be based on the complete application rather than material cost alone.
For disposable and short-term applications, medical-grade PVC may provide an economical solution.
For applications requiring greater flexibility and mechanical performance, TPU can be a strong candidate.
For certain long-term indwelling or implant-related applications, silicone may be considered based on the overall device requirements.
If the multi-row tubing must repeatedly bend or pass through a curved pathway, TPU or silicone may provide advantages over conventional flexible PVC.
The actual performance should be evaluated using the final tubing dimensions and application conditions.
Material is only one part of the equation.
The design of medical multi-row tubing may involve:
Number of rows or channels
Individual tube OD and ID
Wall thickness
Overall width and height
Distance between channels
Cross-sectional geometry
Bonding between individual tubes
Hardness
Color or identification stripes
Radiopaque or other functional features
As the structure becomes more complex, precision extrusion and customized tooling become increasingly important.
The sterilization method should be evaluated together with the selected material and specific grade.
Depending on the medical-grade formulation and final product design, different tubing materials may have different compatibility with EtO, gamma radiation, e-beam, or steam sterilization.
Procurement teams should request material and sterilization compatibility data from the tubing manufacturer instead of making a decision based solely on the polymer category.
Standard tubing may not meet the dimensional and structural requirements of a complex medical device.
A professional custom extrusion manufacturer can evaluate the relationship between material, tubing dimensions, cross-sectional design, tooling, extrusion parameters, and dimensional tolerances.
For medical multi-row tubing, it is especially important to work with a supplier that understands complex extrusion structures rather than simply supplying standard single-lumen tubing.
Kunshan Bova Plastic Co., Ltd. (Bova) specializes in custom medical extrusion tubing and provides customized tubing solutions for medical device manufacturers.
Bova can support custom medical tubing projects using materials such as PVC, TPU, PE, PEEK, and Pebax, depending on the requirements of the application.
For custom medical multi-row tubing, Bova can work from customer-provided drawings, specifications, or product requirements to evaluate:
Multi-row and multi-channel cross-sectional designs
Tube OD, ID, and wall thickness
Material and hardness
Channel arrangement
Custom colors and identification features
Precision extrusion requirements
Prototype and tooling development
For procurement teams searching for a custom medical tubing manufacturer, medical multi-row tubing supplier, or medical multi-lumen tubing manufacturer, Bova can provide a project-based extrusion solution based on the required material, dimensions, and cross-sectional structure.
Looking for custom medical multi-row tubing? Contact Kunshan Bova to discuss your tubing drawing, material requirements, dimensions, and application.
There is no single best material for every application. PVC is generally suitable for cost-sensitive disposable tubing, TPU offers a strong balance of flexibility and mechanical performance, while silicone is often considered when excellent flexibility and long-term medical contact performance are required.
Not necessarily. TPU generally offers better elasticity, flexibility, kink resistance, and abrasion resistance, while PVC has advantages in cost, transparency, and mature high-volume processing. The choice depends on the medical device application.
Yes. Medical-grade PVC can be suitable for many disposable and short-term medical tubing applications. However, the specific PVC formulation and plasticizer system should be evaluated according to the intended medical use.
Silicone may be considered when very high flexibility, temperature resistance, and long-term medical contact performance are important. TPU may be preferable when higher mechanical strength, abrasion resistance, or thermoplastic precision extrusion is required.
Yes. Multi-row tubing can be customized according to the required cross-sectional geometry, number of channels, tube diameter, wall thickness, material, hardness, color, and other functional requirements. Complex designs should be evaluated by an experienced extrusion manufacturer.
For an accurate quotation, provide the 2D/3D cross-sectional drawing, material, OD, ID, wall thickness, hardness, number of rows or channels, total dimensions, color requirements, intended application, sterilization method, and estimated annual volume.
The more complete the technical information, the easier it is for the manufacturer to evaluate tooling, extrusion feasibility, tolerances, and production requirements.
Choosing the right medical multi-row tubing material requires more than comparing material prices.
PVC is a cost-effective choice for many disposable applications; TPU provides an attractive balance of flexibility and mechanical performance; silicone is a strong candidate for applications requiring excellent flexibility and long-term medical contact performance.
For medical device manufacturers and procurement teams, the final decision should consider service life, flexibility, mechanical requirements, sterilization, biocompatibility, tubing geometry, dimensional tolerances, manufacturing feasibility, and total cost.
For complex custom medical multi-row tubing projects, Kunshan Bova can provide material and precision extrusion solutions based on your drawings and application requirements.
