Views: 0 Author: Site Editor Publish Time: 2026-08-28 Origin: Site

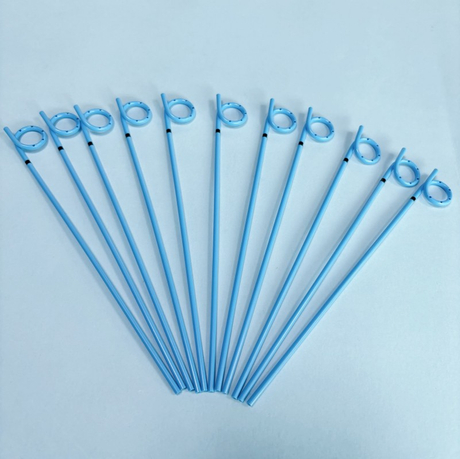

In critical care and surgical recovery, a medical device must navigate complex anatomies without causing tissue trauma or structural failure. Device engineers face a strict dichotomy when selecting polymers. Materials soft enough for patient comfort, like silicone, often lack the tensile strength to prevent kinking. Rigid materials, such as PVC, risk tissue damage and rely on potentially hazardous plasticizers. Thermoplastic Polyurethane (TPU) bridges this gap. We evaluate how TPU's unique mechanical properties, customizable durometer, and processing versatility make it the definitive material for engineering a high-performance, flexible Drainage Tube. You will see exactly how this polymer handles dynamic mechanical stress while maintaining absolute lumen patency. By examining extrusion tolerances, thermo-sensitive adaptability, and biocompatibility standards, this guide provides the technical baseline required to specify TPU for advanced fluid management systems.
Unmatched Tensile Strength: TPU allows for the extrusion of thin wall TPU tubing, maximizing internal flow rates (lumen capacity) without increasing the outer diameter or sacrificing burst pressure.
Thermo-Sensitive Adaptability: Medical-grade TPU softens at body temperature, facilitating easier insertion while conforming to anatomical structures to reduce patient discomfort.
Plasticizer-Free Biocompatibility: Unlike flexible PVC, TPU achieves its elasticity without the use of phthalates, simplifying regulatory compliance for prolonged bodily contact.
Manufacturing Precision: While highly versatile for both extrusion and 3D-printed prototyping, TPU requires strict moisture control (due to its hygroscopic nature) to prevent polymer chain degradation during thermal processing.
Designing fluid management devices requires strict adherence to physical and biological baselines. Engineers must account for flow dynamics, structural integrity, and patient safety. A catheter must move fluids efficiently from a high-pressure cavity to a low-pressure collection system. Any disruption in this pathway compromises patient recovery. The baseline requirements dictate that the polymer must resist chemical degradation from bodily fluids, maintain dimensional stability under varying temperatures, and provide a frictionless surface for insertion. We look at specific metrics like tensile yield strength and ultimate elongation. These non-negotiable parameters form the foundation of medical extrusion design. When specifying a medical drainage tube, the material must handle continuous exposure to biological enzymes without embrittlement.
An effective catheter must bend through tortuous anatomical pathways without occluding. Kink resistance is a primary failure mode in fluid management. When a tube bends beyond its critical kink radius, the outer wall stretches while the inner wall buckles, collapsing the lumen. Engineers calculate the kink radius based on the material's flexural modulus and wall thickness. A lower flexural modulus allows for tighter bends. However, if the material lacks sufficient structural memory, the bend becomes a permanent crease. The ideal polymer absorbs the bending stress and redistributes it along the shaft. This ensures the internal pathway remains open regardless of the insertion angle. We test this by wrapping the extruded profile around standardized mandrels to verify the exact point of occlusion.
A fluid management device operates in a dynamic, high-stress environment. It must withstand radial compression from surrounding tissues, torsional stress during placement, and negative vacuum pressure during active suction. Soft elastomers often fail under active suction, collapsing inward and halting fluid removal. Prolonged placement introduces additional risks, such as patient movement causing sudden tensile spikes. The chosen material must exhibit high hoop strength to resist vacuum collapse and high tensile strength to prevent elongation or tearing during removal. Maintaining absolute lumen integrity under these combined mechanical forces is the primary objective of catheter engineering.
Mechanical Force | Clinical Scenario | Required Polymer Property |
|---|---|---|
Radial Compression | Passing through tight anatomical strictures or muscle walls. | High hoop strength and crush resistance. |
Negative Vacuum Pressure | Active suction applied to remove heavy exudate or blood clots. | High flexural modulus to prevent inward lumen collapse. |
Torsional Stress | Physician rotating the catheter during complex insertions. | High shear strength and torque transmission. |
Tensile Stress | Sudden patient movement or device extraction. | High ultimate tensile strength and elongation at break. |
Silicone has long been the standard for biocompatible implants due to its inert nature and extreme softness. However, silicone exhibits significant mechanical limitations in catheter design. It possesses low tensile strength and poor tear resistance. When engineers attempt to reduce the wall thickness of a silicone tube, the material becomes highly susceptible to bursting or collapsing under suction. Furthermore, silicone lacks pushability. Its low modulus makes it difficult to advance through tight anatomical structures without a guidewire or stiffening stylet. TPU delivers superior tear resistance and higher tensile strength. It provides the necessary column strength for smooth catheter insertion while retaining enough flexibility to navigate complex vascular or cavity pathways. You can push a TPU shaft directly without it buckling back on itself.
Polyvinyl Chloride (PVC) requires the addition of chemical plasticizers to achieve flexibility. Historically, manufacturers used Di(2-ethylhexyl) phthalate (DEHP) to soften rigid PVC for medical tubing. These plasticizers are not chemically bound to the polymer matrix. Over time, they leach out of the plastic and into surrounding fluids or tissues. This leaching poses significant health risks and complicates regulatory approval for prolonged bodily contact. The medical industry is actively shifting away from plasticized PVC. TPU offers inherent flexibility derived from its block copolymer structure. It completely eliminates the need for phthalates or other mobile plasticizers. This inherent elasticity ensures a stable, non-leaching profile that easily satisfies stringent biocompatibility standards.
Selecting materials based solely on initial availability often leads to premature device failure. TPU's high tensile strength allows engineers to design devices with significantly thinner walls. This reduces the total volume of material required per unit while maximizing internal capacity. More importantly, TPU exhibits exceptional resistance to lipid degradation and mechanical fatigue. Devices manufactured from TPU demonstrate superior longevity in clinical settings. They resist the micro-cracking and embrittlement that plague other polymers after prolonged exposure to body heat and fluids. This durability reduces the frequency of catheter replacements and minimizes the risk of adverse mechanical failures during critical care procedures.
The versatility of TPU stems from its block copolymer chemistry. It consists of alternating hard and soft segments. The hard segments, typically composed of diisocyanates, provide tensile strength and rigidity. The soft segments, made of polyols, provide elasticity and flexibility. Polymer chemists can precisely tailor the ratio of these segments during synthesis. This allows manufacturers to specify durometers ranging from a highly flexible Shore 70A to a rigid Shore 75D. Advanced extrusion techniques even allow for variable durometers along a single shaft. Engineers can design a TPU drainage catheter with a stiff proximal end for optimal pushability and a soft distal tip to prevent tissue perforation.
Medical devices undergo repeated bending, stretching, and torsion. TPU excels in these dynamic conditions due to its high elongation at break. The material can stretch up to 600% of its original length without fracturing. This high elasticity ensures that the catheter absorbs sudden mechanical shocks without tearing. Additionally, TPU possesses excellent memory retention. When deformed by an anatomical curve or external compression, the polymer matrix actively works to return to its original extruded shape. This memory prevents permanent deformation, ensuring the internal lumen does not collapse or kink after navigating a tortuous pathway. We rely on this memory to maintain consistent flow rates even when the patient shifts positions.
One of the most distinct clinical advantages of TPU is its thermo-sensitive nature. At room temperature (approximately 22°C), medical-grade TPU remains relatively rigid. This rigidity provides excellent column strength, allowing clinicians to insert and advance the catheter with precision. Upon entering the body and reaching 37°C, the polymer undergoes a physical transition. The soft segments within the TPU matrix relax, causing the entire tube to soften significantly. This in vivo softening allows the catheter to conform naturally to the surrounding anatomy. It drastically reduces continuous pressure on vessel walls or organ tissues, minimizing patient discomfort and lowering the risk of pressure necrosis.
Fluid dynamics in catheter design are governed by Poiseuille's Law. The law states that flow rate is directly proportional to the fourth power of the internal radius. A minuscule increase in the inner diameter (ID) results in an exponential increase in fluid flow. However, clinical constraints require the outer diameter (OD) to remain as small as possible to minimize insertion trauma. TPU's exceptional structural integrity allows engineers to specify thin wall TPU tubing. By reducing the wall thickness, engineers maximize the ID without increasing the OD. This optimization achieves superior drainage rates while keeping the device minimally invasive.
Engineers do not always need to change the base resin to alter a catheter's flexibility. By manipulating wall thickness profiles during the extrusion process, designers can precisely control localized stiffness. Tapering the wall thickness toward the distal end creates a highly flexible tip, while maintaining a thicker wall at the proximal end ensures pushability. This geometric tuning allows for highly specialized designs using a single, validated TPU compound. It simplifies the supply chain and reduces the regulatory burden associated with validating multiple materials for a single device. We use programmable pullers on the extrusion line to execute these precise tapers on the fly.
Modern medical procedures often require simultaneous fluid delivery and extraction. This necessitates multi-lumen catheters. Extruding complex internal geometries requires a polymer that holds its shape as it exits the extrusion die. TPU's high melt strength makes it ideal for multi-lumen profiles. The internal dividing walls can be extruded extremely thin without rupturing under the pressure differentials of simultaneous irrigation and suction. Whether designing a double-lumen pigtail catheter or a complex four-lumen central venous line, TPU maintains strict dimensional tolerances across all internal pathways.
Visibility under fluoroscopy or X-ray is a critical requirement for accurate catheter placement. Pure TPU is radiolucent, meaning it does not appear on X-rays. To solve this, compounders blend TPU resin with radiopaque additives such as barium sulfate, bismuth subcarbonate, or tungsten. TPU accepts high loading levels of these heavy metal powders (often up to 40% by weight) without severely degrading its baseline mechanical properties. The resulting compound provides excellent radiopacity, ensuring clinicians can verify the exact position of the tube in real-time without compromising flexibility or burst pressure.
The primary challenge in processing TPU is its highly hygroscopic nature. The polymer rapidly absorbs ambient moisture from the air. If extruded while wet, the water vaporizes inside the extrusion barrel. This causes hydrolysis, breaking down the polymer chains and resulting in a catastrophic loss of mechanical strength. The extruded tubing will exhibit visual defects such as foaming, bubbling, or a rough surface finish. To prevent this, manufacturers must utilize desiccant dryers to pre-dry the TPU resin to a specific dew point (typically -40°C) and achieve a moisture content below 0.02% prior to thermal processing.
Producing high-quality TPU medical tubing requires precise control over the extrusion parameters. Melt temperature must be strictly regulated across multiple barrel zones to prevent thermal degradation while ensuring a homogeneous melt. As the thin-walled tubing exits the die, it enters a water cooling bath. The temperature and vacuum pressure of this bath dictate the final outer diameter and wall thickness. Advanced manufacturing facilities employ inline laser micrometers and ultrasonic wall thickness gauges. These tools provide real-time feedback to the puller speed, ensuring the tubing maintains strict dimensional tolerances throughout continuous production runs.
Pre-dry the TPU resin in a desiccant hopper to achieve a moisture content below 0.02%.
Establish a precise temperature profile across the extruder barrel zones to ensure a uniform melt without degrading the polymer.
Calibrate the inline laser micrometers to monitor the outer diameter continuously as the profile exits the die.
Adjust the vacuum sizing tank pressure to stabilize the internal lumen geometry during the initial cooling phase.
Sync the puller speed with the extruder screw RPM to maintain consistent wall thickness over long production runs.
Additive manufacturing has accelerated the iterative design process for medical devices. Flexible TPU filaments are frequently used for functional prototyping. However, 3D printing TPU presents unique challenges. Due to its flexibility, TPU struggles with extreme overhangs and bridging. The material tends to droop before cooling, which can collapse internal lumens or distort complex geometries. Designers must pair TPU with specialized, easily dissolvable or break-away support materials. Strategic support placement preserves the internal lumen geometry during printing, allowing engineers to test flow dynamics and anatomical fit before committing to expensive steel extrusion tooling.
Medical polymers must undergo rigorous biological evaluation before clinical use. The ISO 10993 standard dictates the testing matrices for blood-contacting and tissue-contacting devices. TPU consistently passes these critical evaluations. Testing includes Part 5 for in vitro cytotoxicity, ensuring the material does not destroy living cells. Part 10 evaluates sensitization and intracutaneous reactivity to confirm the polymer does not trigger allergic or inflammatory responses. Furthermore, high-grade medical TPUs meet USP Class VI requirements, certifying their safety for systemic injection and implantation. The absence of mobile plasticizers in TPU significantly streamlines this biological validation process.
A medical device must withstand sterilization without losing its mechanical integrity. TPU offers broad compatibility with standard industrial sterilization methods, though specific formulations react differently to thermal stress.
Sterilization Method | TPU Compatibility | Impact on Polymer Structure |
|---|---|---|
Ethylene Oxide (EtO) | Excellent | Gas penetrates easily. No thermal degradation or loss of tensile strength. Requires standard aeration time. |
Gamma Irradiation | Very Good | Stable up to standard medical doses (25-50 kGy). May cause slight yellowing in clear compounds, but mechanicals remain intact. |
E-Beam Irradiation | Very Good | Similar to Gamma. Fast processing time with minimal impact on flexibility or burst pressure. |
Autoclaving (Steam) | Limited | High heat (121°C+) can cause softer TPU grades to deform, warp, or melt. Only specific high-durometer grades survive steam sterilization. |
In clinical environments, catheters are exposed to a variety of harsh substances. TPU demonstrates excellent chemical resistance to bodily fluids, including blood, urine, and gastric acids. Furthermore, it resists degradation from intravenous lipids, which frequently cause polycarbonate and PVC components to crack. TPU also withstands exposure to common hospital disinfectants, such as isopropyl alcohol and chlorhexidine. This robust chemical profile ensures the material does not swell, embrittle, or degrade during the intended lifecycle of the device, maintaining a secure and sterile fluid pathway.
Define your exact flow rate requirements to calculate the minimum acceptable inner diameter for your specific application.
Select a specific Shore hardness based on the required balance between column strength for insertion and flexibility for patient comfort.
Consult with a polymer compounding expert to determine the optimal radiopaque filler loading for your specific imaging requirements.
Partner with an extrusion manufacturer equipped with inline laser measurement tools to guarantee strict dimensional tolerances for thin-walled designs.
Initiate early-stage prototyping using 3D-printed TPU to validate internal geometries before investing in permanent extrusion tooling.
A: TPU provides significantly higher tensile strength and tear resistance than silicone. This allows engineers to manufacture thinner walls without sacrificing burst pressure. TPU also offers better pushability, making it easier to insert through tight anatomical pathways, whereas silicone often requires a stiffening stylet due to its low modulus.
A: Yes. Due to its high structural integrity and customizable durometer, TPU exhibits excellent hoop strength. It resists collapsing and maintains lumen integrity far better than softer elastomers like silicone when subjected to active suction or external tissue compression.
A: TPU is thermo-sensitive. At room temperature, it remains relatively stiff, providing the column strength necessary for precise insertion. Once inserted, it softens upon exposure to body temperature (37°C). This softening allows the tube to conform to anatomical structures, reducing tissue trauma and patient discomfort.
A: TPU is highly hygroscopic, meaning it absorbs moisture rapidly from the air. If the resin is not thoroughly dried to a specific dew point before extrusion, the moisture causes polymer chain degradation. This results in weak, foamy, or visually defective tubing with compromised mechanical properties.
A: Yes. Medical-grade TPU is highly compatible with Ethylene Oxide (EtO), Gamma irradiation, and E-Beam sterilization without losing mechanical strength. However, high-heat autoclaving is generally not recommended for softer TPU grades, as the extreme temperatures can cause the polymer to warp or melt.
A: Yes. Flexible TPU filaments are excellent for functional prototyping. However, designers must account for its difficulty with bridging and overhangs. Utilizing appropriate, easily removable support materials is necessary to maintain the tube's internal structure and complex geometries during the printing process.
