Custom Multi-Lumen Catheter Tubing: Design Challenges, Manufacturing Process, and Supplier Selection Guide

What Is Custom Multi-Lumen Catheter Tubing?

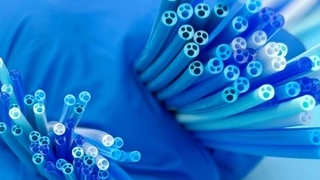

Custom multi-lumen catheter tubing is a precision medical tubing solution designed with multiple independent internal channels to achieve different functions within a single catheter structure.

Compared with conventional single-lumen tubes, multi-lumen catheter tubing allows medical devices to simultaneously perform multiple functions, such as:

• Guidewire navigation

• Contrast media injection

• Drug delivery

• Balloon inflation

• Fluid drainage

• Pressure monitoring

Depending on clinical requirements, multi-lumen catheter tubes can be designed with two lumens, three lumens, five lumens, six lumens, seven lumens, eight lumens, or nine lumens.

Because of their complex internal structures and strict dimensional requirements, multi-lumen catheter tubes are considered one of the most challenging products in precision medical extrusion.

Common Challenges in Multi-Lumen Catheter Tube Development

1. Complex Lumen Structure and Limited Manufacturing Capability

One of the biggest challenges for medical device developers is finding an experienced extrusion manufacturer capable of producing complex multi-lumen structures.

As the number of lumens increases, manufacturing difficulty rises significantly.

Common challenges include:

• Eight-lumen and nine-lumen tube extrusion

• Irregular lumen shapes

• Thin-wall multi-channel structures

• Tight dimensional tolerances

• Stable mass production

Without advanced tooling design and extrusion experience, problems such as uneven lumen distribution and unstable dimensions may occur.

2. Unstable Lumen Dimensions During Mass Production

Multi-lumen catheter tubing requires precise control of:

• Outer diameter

• Individual lumen size

• Wall thickness

• Concentricity

• Cross-section accuracy

During production, poor process control may cause:

• Lumen deformation

• Channel blockage after bending

• Uneven wall thickness

• Poor assembly compatibility

Stable extrusion technology is essential to ensure consistent catheter performance.

3. Incorrect Material Selection Affecting Catheter Performance

Different medical applications require different material properties.

Common medical catheter materials include:

Selecting unsuitable materials may result in:

• Catheter kinking

• Insufficient pushability

• Poor torque response

• Sterilization incompatibility

Therefore, material selection is a critical step during catheter development.

4. Long Tooling Development and High Prototype Costs

Multi-lumen catheter extrusion requires customized extrusion dies.

The tooling development process involves:

• Cross-section design

• Flow simulation

• Die machining

• Trial extrusion

• Process adjustment

For complex structures, multiple iterations may be required before achieving the final specifications.

An experienced supplier can significantly reduce development time and prototype costs.

Medical Multi-Lumen Catheter Customization Process

A professional medical tubing manufacturer usually follows a structured development process.

Step 1: Requirement Analysis

Customers provide key product information, including:

• Lumen number

• Cross-section drawing

• Outer diameter

• Individual lumen dimensions

• Material requirements

• Hardness

• Radiopaque requirements

• Medical application

Complete technical information helps improve development efficiency.

Step 2: Engineering Feasibility Evaluation

The manufacturer evaluates:

• Extrusion feasibility

• Material suitability

• Tolerance requirements

• Expected performance

Technical recommendations are provided regarding:

• Material selection

• Structure optimization

• Manufacturing method

Step 3: Customized Extrusion Tooling Development

Multi-lumen tubes require specialized extrusion dies.

Possible designs include:

• Multiple circular lumens

• Central lumen with surrounding channels

• Crescent-shaped lumens

• Customized irregular lumen structures

Advanced tooling design ensures balanced material flow and stable tube geometry.

Step 4: Prototype Production and Testing

During sample development, manufacturers typically perform:

• Dimensional measurement

• Lumen inspection

• Pressure testing

• Mechanical testing

• Surface quality inspection

Prototype evaluation helps optimize the design before mass production.

Step 5: Process Optimization and Mass Production

After sample approval, production parameters are standardized.

A reliable production system includes:

• Online dimensional monitoring

• Stable extrusion conditions

• Batch consistency control

• Clean manufacturing environment

This ensures long-term supply reliability.

Key Parameters to Confirm Before Developing Multi-Lumen Tubing

Before starting a custom catheter project, medical device companies should confirm:

Structural Parameters

• Number of lumens

• Lumen shape

• Lumen diameter

• Outer diameter

• Wall thickness

Material Parameters

• Polymer type

• Material grade

• Hardness requirement

• Chemical compatibility

Functional Requirements

• X-ray visibility requirement

• Sterilization method

• Maximum working length

• Pressure resistance

• Expected implantation duration

Clear technical requirements help shorten development cycles and improve final product performance.

Applications of Custom Multi-Lumen Catheter Tubing

Cardiovascular Catheters

Used for:

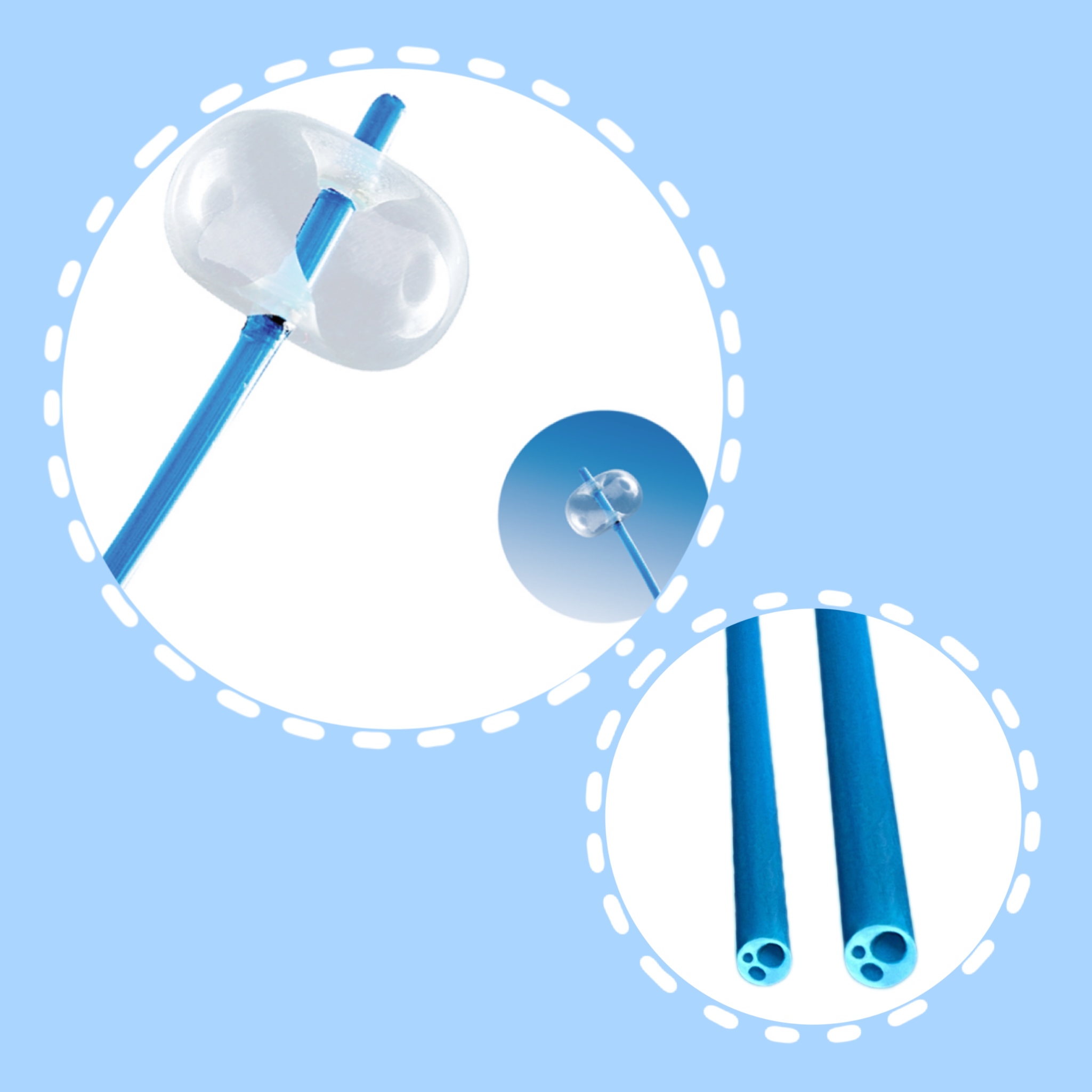

• Balloon catheter systems

• Vascular access devices

• Interventional delivery systems

Multi-channel structures allow simultaneous guidewire control and fluid delivery.

Neurovascular Devices

Used in:

• Microcatheters

• Stroke intervention devices

• Embolization systems

Requires excellent flexibility and precise navigation capability.

Drainage and Access Catheters

Applications include:

• Multi-function drainage tubes

• Fluid management systems

• Specialized medical access devices

Endoscopic and Surgical Instruments

Multi-lumen tubing enables integrated functions within compact medical devices.

Why Choose Kunshan Bova for Custom Multi-Lumen Catheter Tubing?

For medical device manufacturers, choosing a professional extrusion partner is essential for successful catheter development.

(Kunshan Bova Plastic Co., Ltd.) specializes in customized medical tubing extrusion and provides professional solutions for complex catheter applications.

Bova's capabilities include:

• 2-lumen to 9-lumen medical tubing

• Pebax multi-lumen catheter tubes

• TPU medical tubing

• PEEK medical tubes

• Thin-wall catheter tubing

• Customized polymer extrusion solutions

Manufacturing Advantages

Custom Tooling Development

Bova has in-house tooling development capabilities, helping shorten mold development cycles.

Medical Manufacturing Environment

Production is performed in controlled clean manufacturing environments suitable for medical polymer processing.

Multi-Material Extrusion Capability

Supports:

• TPU

• Pebax

• PE

• PEEK

• Medical PVC

Flexible Production Capability

Supports both:

• Prototype development

• Small-batch validation

• Long-term mass production

Bova also provides technical support for:

• Tube structure optimization

• Material selection

• Prototype testing

• Production scaling

Conclusion

Custom multi-lumen catheter tubing is a critical component in advanced minimally invasive medical devices. Due to complex internal structures, strict dimensional requirements, and demanding material performance, successful development requires experienced extrusion technology and professional engineering support.

From double-lumen to nine-lumen catheter tubes, Kunshan Bova Plastic Co., Ltd. provides customized medical extrusion solutions to help medical device manufacturers develop reliable, high-performance catheter components.
