Comprehensive Guide To Medical Drainage Tube Shapes: Bova Full-Series Selection Guide

The diversification of clinical drainage needs drives the development of drainage tubes with increasingly refined shapes.

In modern surgical and interventional therapy, medical drainage tubes serve as essential devices for draining bodily fluids and providing decompression and structural support; their design directly impacts fixation stability, drainage efficiency, and patient comfort. With the widespread adoption of minimally invasive techniques, clinical demands for tube adaptability have risen, and simple straight tubes can no longer meet the diverse requirements of specialties such as biliary, urological, thoracic, and abdominal surgery. Leveraging years of expertise in medical-grade extruded tubing, along with Class 10,000 cleanroom production facilities and precision extrusion technology, Bova has developed a comprehensive portfolio of drainage tubes. This range encompasses various configurations—including straight single-wing, proximally curved single-wing, arc-shaped single-wing, Christmas-tree, double-pigtail, alpha double-pigtail, and single-pigtail designs—enabling the provision of customized drainage solutions to medical institutions at all levels.

Single-Wing Series: A highly adaptable choice for standard drainage applications.

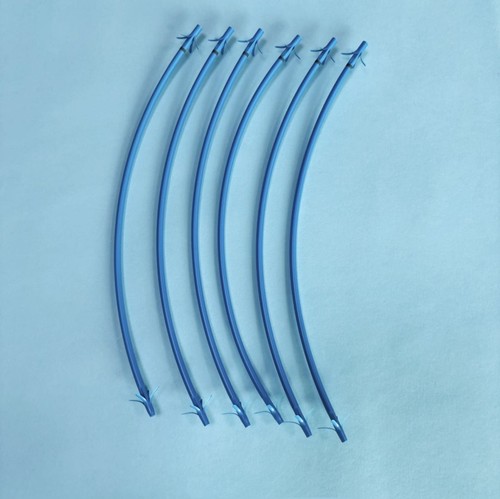

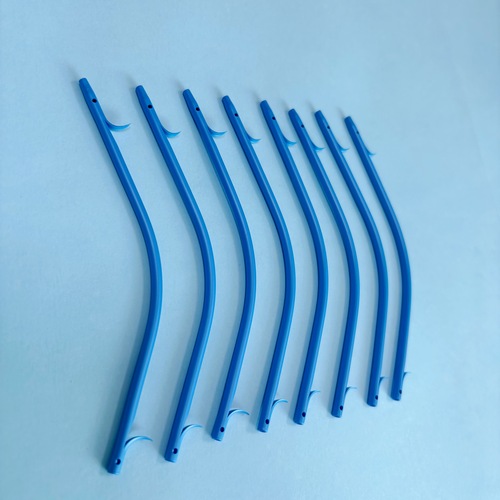

The single-wing drainage catheter is the most widely used type of basic drainage device in clinical practice; it utilizes a wing structure to anchor within the body cavity, thereby preventing catheter displacement or dislodgement. The Bova single-wing series comprises three distinct configurations tailored to different anatomical pathways: the straight single-wing model features a straight shaft with the wing positioned proximally, making it suitable for direct-access puncture and short-distance drainage—it is easy to handle and simple to insert, commonly used for superficial body cavities and postoperative incision drainage; the proximally curved single-wing model incorporates a pre-set natural curve at the proximal end to conform to the body's physiological curvature, reducing insertion resistance and mucosal friction, making it particularly ideal for placement in angled or curved cavities; and the arc-shaped single-wing model features a smooth, continuous arc that conforms to the physiological curvature of the cavity, minimizing the sensation of a foreign body during long-term indwelling and reducing tissue compression and inflammatory reactions. All three product types are manufactured from medical-grade PE/TPU materials with excellent biocompatibility and contain radiopaque agents throughout the shaft, ensuring clear visualization under X-ray imaging.

Pigtail Series: The Preferred Solution for Long-Term Indwelling and Secure Drainage

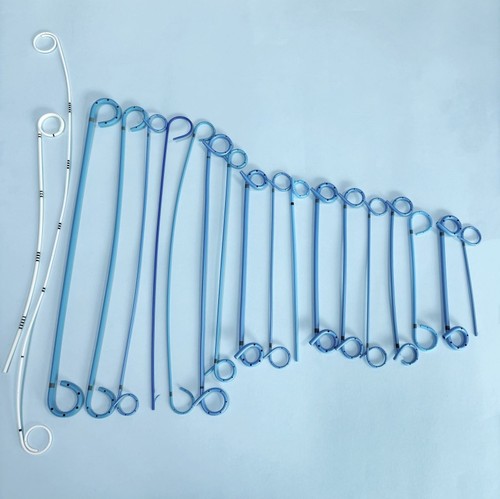

Named for the pig-tail-like curl at their ends, pigtail drainage catheters are the preferred choice for long-term internal drainage. The Bova pigtail series comprises three types: single-pigtail, double-pigtail, and alpha double-pigtail. Single-pigtail catheters feature a curl at only one end for anchoring, while the other connects to an external drainage bag; they are primarily used for external drainage procedures—such as percutaneous transhepatic cholangial drainage (PTCD) and nephrostomy—offering operational flexibility and easy removal. Double-pigtail catheters feature J-shaped curls at both ends to anchor within the upper and lower tracts, facilitating internal drainage without the need for an external bag, thereby allowing patients to remain mobile; widely used for ureteral and biliary stenting, they effectively support the lumen and prevent strictures. The alpha double-pigtail is an upgraded configuration featuring a curvature better suited to the anatomical contours of the renal pelvis and bladder; it offers superior fixation and a reduced risk of migration or dislodgement, making it ideal for complex obstruction cases and long-term indwelling needs. The entire series utilizes a multi-side-hole design to maximize drainage surface area and minimize the risk of catheter occlusion.

Christmas tree-shaped drainage catheter: a specialized, high-efficiency configuration for biliary stents.Christmas tree-shaped drainage catheter: a specialized, high-efficiency configuration for biliary stents.

The "Christmas tree" drainage tube is a specialized design for biliary drainage, featuring multiple sets of circumferential protruding flanges along the tube body that resemble the tiered structure of a Christmas tree. The core advantage of this design lies in the balance between multi-level anchoring and sustained patency: the circumferential flanges embed into the mucosal folds of the bile duct, significantly enhancing axial resistance against dislodgement and preventing stent migration. Simultaneously, the gaps formed between the protrusions facilitate drainage and resist clogging by biliary sludge or stone fragments, resulting in superior long-term patency compared to standard straight tubes. Manufactured via precision extrusion using medical-grade polyethylene, the Bova Christmas tree drainage tube offers uniform wall thickness and optimal elasticity; it is compatible with endoscopic placement (ERCP) and suitable for cases involving biliary obstruction of varying diameters, demonstrating excellent performance in managing malignant biliary obstruction, benign bile duct strictures, and postoperative biliary leaks.

How to select the appropriate shape of drainage tube based on clinical scenarios

The selection of drainage tube shape requires comprehensive consideration of the drainage site, indwelling duration, operative path, and patient tolerance. For superficial postoperative drainage and short-term drainage of body cavity effusions, a straight single-wing type is preferred due to its rapid insertion and low cost. For drainage of cavities with physiological curvature, a proximal curved single-wing or arc-shaped single-wing type is recommended to reduce tissue damage. For medium- to long-term internal support drainage, double-pigtail or α-double-pigtail types are preferred, balancing fixation effectiveness and patient quality of life. For biliary drainage, a Christmas tree-shaped type is preferred to ensure long-term patency. Bova offers customized services based on the medical device manufacturer's needs, including specifications, length, and side hole layout. All products are manufactured in a clean environment and delivered unsterilized, meeting downstream aseptic processing requirements.

For detailed parameters, sample testing, or custom quotes for drainage tubes of various shapes, please contact Bova. We will provide you with professional medical drainage tube selection solutions and technical support.
