An In-depth Analysis of Christmas Tree-Shaped Drainage Tubeing

Clinical challenges and equipment iterations in biliary drainage

Biliary obstruction is a common condition in gastroenterology and interventional radiology, caused by various factors such as bile duct stones, malignant tumors, and inflammatory strictures. If not drained and decompressed promptly, it can lead to serious consequences such as jaundice, infection, and liver failure. Biliary stenting is the mainstream minimally invasive approach for relieving obstruction, but ordinary straight stents have two major drawbacks: firstly, they are prone to displacement and slippage, as bile duct peristalsis and bile flushing can easily cause the stent to migrate downwards; secondly, they are prone to blockage, as biliary sludge, mucus, and tumor tissue can easily cover the stent tip and side openings, causing drainage failure. To address these drawbacks, Christmas tree-shaped drainage tubes have been developed, becoming the preferred configuration for biliary drainage due to their unique multi-level lateral wing structure. Kunshan Bova Plastics specializes in medical precision extrusion and can produce high-quality Christmas tree-shaped biliary drainage tubes to help improve the effectiveness of biliary drainage in clinical practice.

Structural Design and Fixation Principle of Christmas Tree-Shaped Drainage Tubes

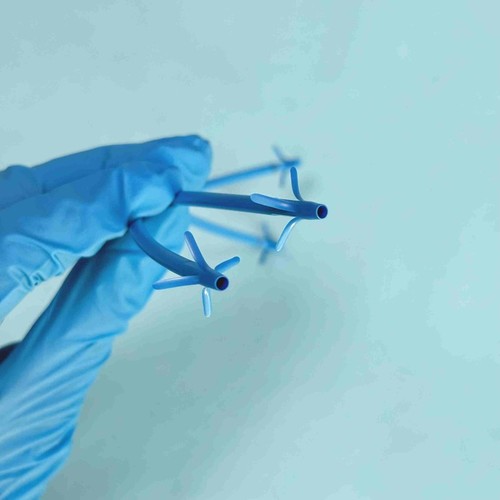

The "Christmas tree" drainage tube derives its name from the multiple sets of annular, protruding lateral fins distributed along the tube's axis; arranged in tiers, their form closely resembles the layered structure of a Christmas tree. Each set of fins functions as an independent anchoring unit; once inserted into the bile duct, the annular fins engage with the mucosal folds and physiological narrowings, generating axial resistance at multiple points. Compared to designs featuring only one or two fins, this multi-point fixation offers a vastly superior ability to resist dislodgement: even if one set of fins fails to anchor effectively, the remaining fins maintain the stent's position, significantly reducing the risk of migration. Simultaneously, the recessed areas between the fins create natural drainage channels, allowing bile to flow continuously without the reduction in cross-sectional drainage area often caused by fin structures. The Bova Christmas tree tube is manufactured using an integrated molding process, ensuring a seamless connection between the fins and the tube body; this eliminates the risk of breakage at joints and provides uniform, reliable mechanical strength.

Advantages of Christmas tree-shaped drainage tubes regarding patency

Patency rate is a key indicator of biliary stent performance, as stent occlusion is the most common clinical complication. The "Christmas tree" design offers inherent advantages in preventing blockage: first, the multi-level flanges separate the stent body from the bile duct wall, preventing the "wall-suction effect"—where direct contact between the stent and the duct wall causes side-hole occlusion; second, the flow of bile creates turbulence within the spaces between the flanges, flushing away biliary sludge and debris and inhibiting their accumulation; and third, the side holes are positioned within the recessed areas between the flanges, where they are shielded from being covered by tumor tissue or inflammatory granulation tissue. Clinical data indicate that Christmas tree stents achieve significantly higher medium- to long-term patency rates than standard straight stents; they are particularly well-suited for palliative drainage in cases of malignant biliary obstruction, as they extend the interval between stent replacements and reduce the physical suffering and financial burden associated with repeat procedures.

Clinical applications of Christmas tree-shaped drainage tubes

The Christmas tree-shaped drainage tube is primarily used for biliary drainage during endoscopic retrograde cholangiopancreatography (ERCP). Specific applications include: support drainage for malignant biliary obstruction and strictures, such as postoperative bile duct strictures and inflammatory strictures; transitional drainage when bile duct stones cannot be removed immediately; and conservative treatment of bile leaks, promoting wound healing through drainage and decompression. Additionally, a mini Christmas tree-shaped support can be used for some pancreatic duct drainage scenarios. The Bova Christmas tree-shaped drainage tube is available in sizes from 6Fr to 12Fr, with customizable lengths compatible with various endoscopic working channels and various brands of push-and-release systems.

Quality assurance of Kunshan Bova Christmas tree drainage tubes

Bova Kunshan manufactures Christmas tree-shaped drainage tubes made from medical-grade high-density polyethylene, which is resistant to bile corrosion, has good biocompatibility, and shows no significant degradation or inflammatory reaction even after long-term placement. The tube body contains a highly effective contrast agent, ensuring a clear outline under X-ray, facilitating intraoperative positioning and postoperative follow-up. The tube has uniform wall thickness, smooth inner and outer walls for easy insertion, and good compatibility with guidewires. The product is manufactured and packaged in a Class 10,000 cleanroom and delivered unsterilized, meeting the subsequent aseptic processing requirements of medical device manufacturers. The company supports full-process customization services from mold development to mass production.

If you are looking for a high-quality biliary drainage tube supplier, or need a custom-made Christmas tree-shaped support, please contact Kunshan Bova Co., Ltd. for detailed product information and a customized quote.
