A Comprehensive Guide to Pig Tail Drainage Tube Technology: Differences and Selection of Single/Double/α Double Pig Tail Tubes

Design principles and clinical application of pigtail drainage tubes

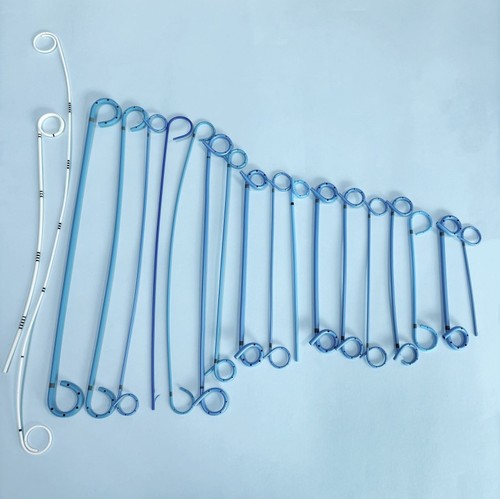

Pigtail drainage tubes are core instruments in interventional drainage, named for their naturally curled end resembling a pig's tail. Their core design utilizes the curled structure for physical anchoring within the cavity: after insertion into the target site, the curled section naturally unfolds and locks into the dilated area of ​​the cavity, effectively preventing catheter displacement and dislodgement without the need for sutures. Simultaneously, the curled shape avoids direct pressure on tissues at the tube end, preventing damage. Compared to traditional straight tubes, pigtail tubes offer more reliable fixation, longer indwelling time, and greater patient freedom of movement, making them a standard drainage solution in urology, interventional gastroenterology, and thoracic surgery. Bova possesses mature pigtail tube manufacturing technology and can produce a full range of products, including single-pigtail, double-pigtail, and α-double-pigtail tubes, covering applications in multiple departments such as biliary tract, urology, and thoracic surgery.

Single Pigtail Drainage Catheter: A Flexible Choice for External Drainage Scenarios

The single-pigtail drainage catheter features a pigtail-curled structure only at the distal (insertion) end, while the proximal end retains a standard connector for attachment to a drainage bag; it is a commonly used device for external drainage procedures. Its advantages include operational flexibility and ease of insertion and removal; physicians can adjust the insertion depth based on drainage requirements, and the proximal end facilitates procedures such as irrigation, aspiration, medication administration, and sampling. Clinically, it is frequently used for percutaneous transhepatic cholangial drainage (PTCD), percutaneous nephrostomy drainage, pleural effusion drainage, and abdominal abscess drainage. The Bova single-pigtail drainage catheter is manufactured from medical-grade PE or TPU, offering excellent biocompatibility and superior shape memory at the curled end, allowing it to rapidly regain its form after release. The catheter body features multiple sets of elliptical side holes, providing a large drainage surface area that resists clogging by blood clots or necrotic tissue. Additionally, the entire catheter is impregnated with a barium sulfate radiopaque agent, ensuring full visibility under X-ray for precise positioning and post-operative follow-up.

Double-pigtail drainage catheter: The standard protocol for internal drainage

Double-pigtail drainage catheters feature J-shaped coiled ends that anchor within two separate anatomical compartments upon placement, enabling complete internal drainage without the need for external drainage devices. In urological applications, for instance, the proximal end is anchored in the renal pelvis and the distal end in the bladder; urine flows naturally through the catheter lumen into the bladder, allowing patients to maintain normal activity and daily routines, thereby significantly improving their quality of life during treatment. This type of catheter is also widely used for internal biliary drainage: the proximal end is placed in the intrahepatic bile duct and the distal end in the duodenum, relieving biliary obstruction while facilitating internal bile drainage and preventing digestive dysfunction caused by bile loss. Double-pigtail catheters are particularly suitable for applications such as stenting for ureteral strictures, post-lithotripsy drainage, and palliative treatment for malignant biliary obstruction. Bova double-pigtail catheters exhibit stable coil recoil and symmetrical end-coiling, offering a balance of structural support and flexibility that allows for smooth passage through narrowed segments.

Alpha Double-Pigtail Drainage Catheter: An Advanced Configuration for Complex Cases

The α-type double-pigtail drainage catheter is an optimized version of the standard double-pigtail catheter. It features an "α-shaped" curl design that conforms more closely to anatomical structures, offering a larger curl diameter and a wider anchoring surface area, resulting in significantly superior fixation stability compared to conventional models. While standard double-pigtail catheters carry a risk of displacement during vigorous activity, intense ureteral peristalsis, or significant luminal dilation, the reinforced curl structure of the α-type catheter provides enhanced axial resistance, drastically reducing the likelihood of displacement, upward migration, or expulsion. This catheter is particularly suitable for complex cases—such as complicated urinary tract obstruction, moderate ureteral stricture, or significant biliary dilation—as well as for patients requiring long-term indwelling use. In addition to providing robust fixation, the Bova α-type catheter features rounded edges on the curled ends to prevent mucosal injury from sharp edges, thereby balancing safety with stability.

Key Selection Criteria and Customization Services for Pigtail Drainage Catheters

Selecting a pigtail drainage catheter requires a comprehensive assessment of the drainage method, indwelling duration, and the complexity of the clinical condition: single-pigtail catheters are suitable for external drainage, while double-pigtail catheters are preferred for internal drainage; for complex, high-risk cases, alpha double-pigtail catheters are the priority. Additionally, the appropriate French (Fr) size must be selected based on the target diameter, and the catheter length and side-hole distribution should be customized according to the lesion's location. Bova offers a full range of custom specifications from 3Fr to 14Fr and supports the selection of materials with varying degrees of stiffness; all products are manufactured in a Class 10,000 cleanroom environment, ensuring high dimensional precision and excellent batch-to-batch consistency.

For detailed specifications of pigtail drainage catheters, to request samples for testing, or to discuss custom collaboration, please contact Bova; our technical team is ready to provide professional product solutions and application support.
